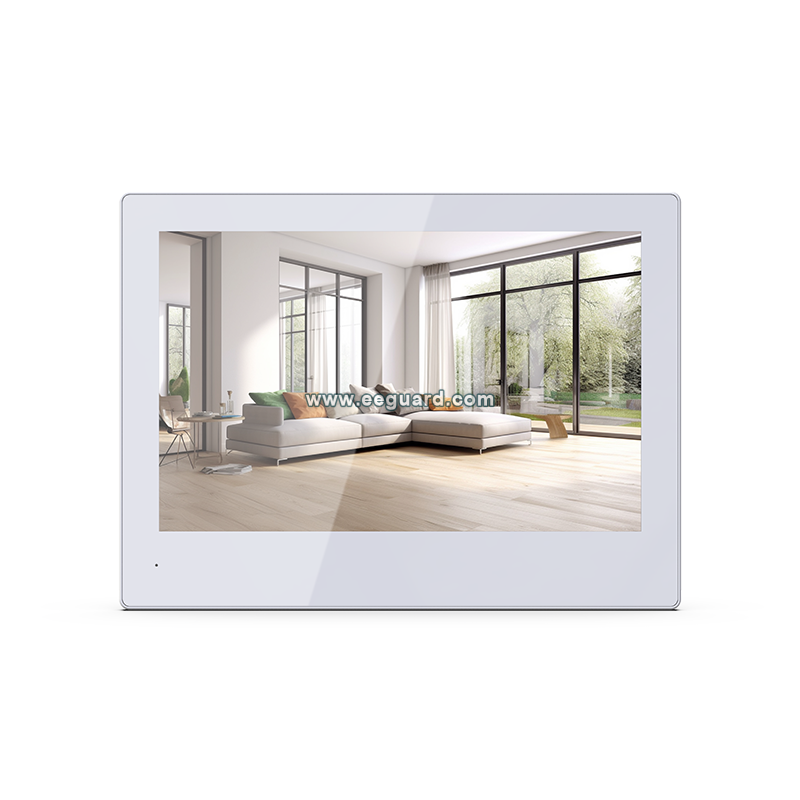

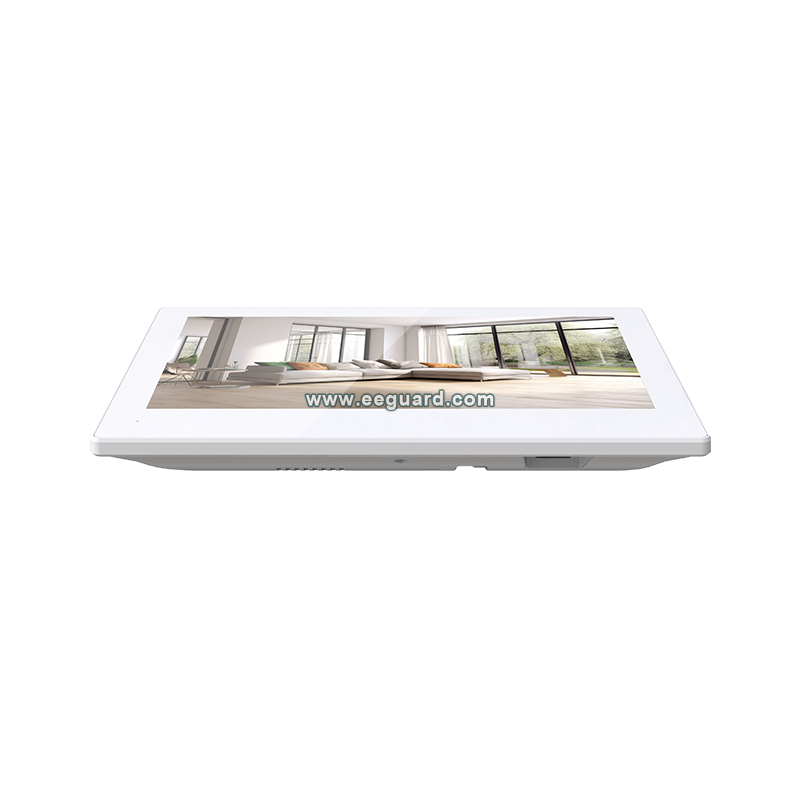

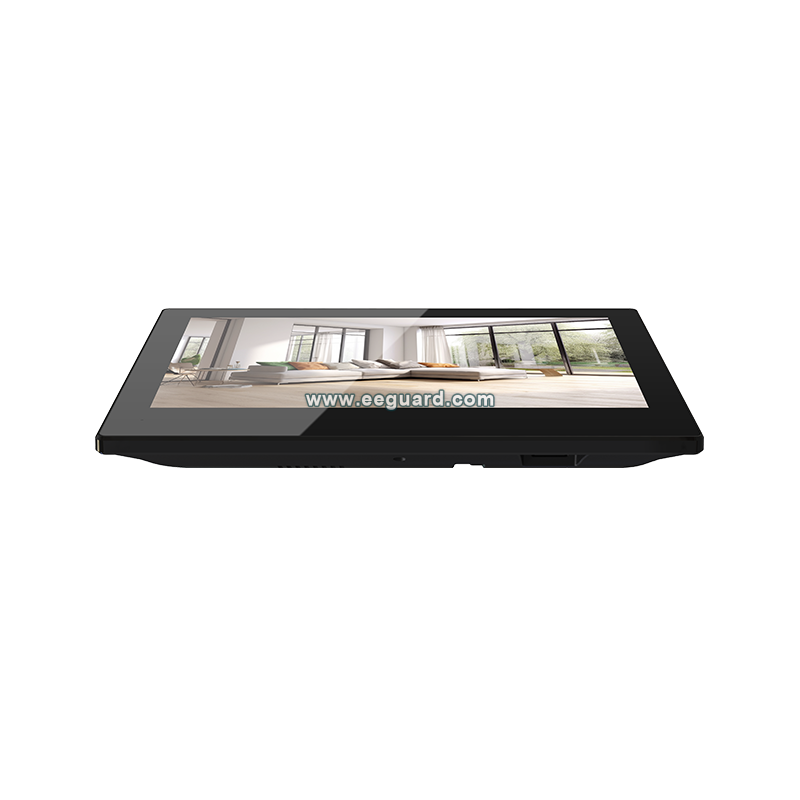

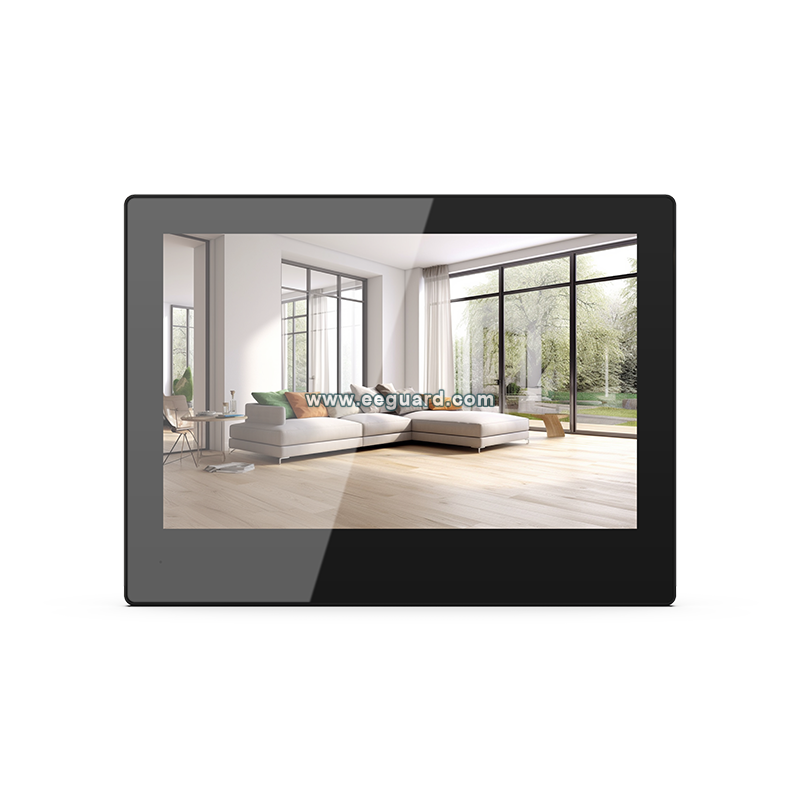

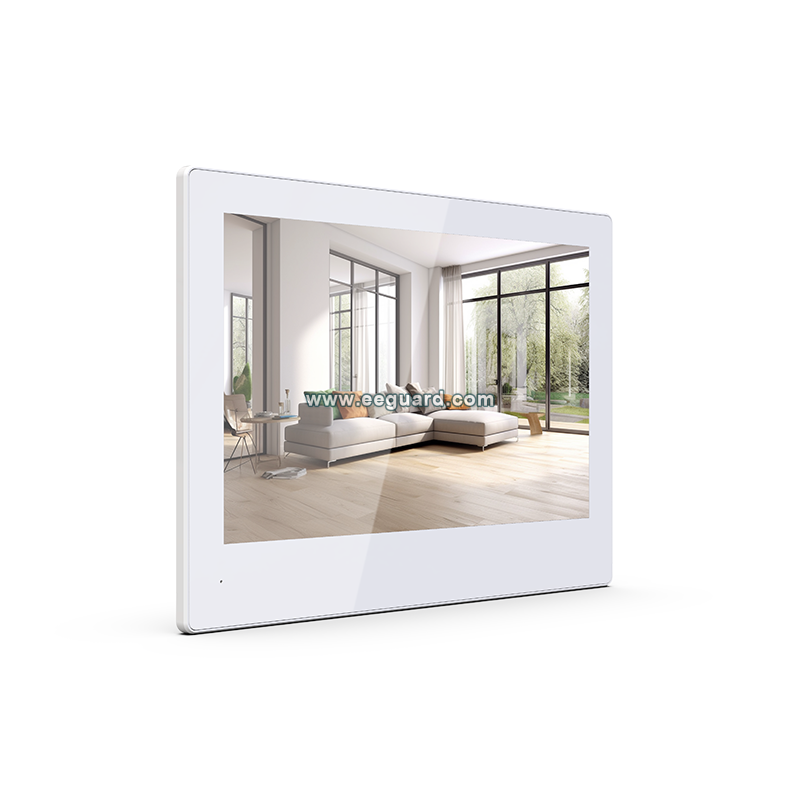

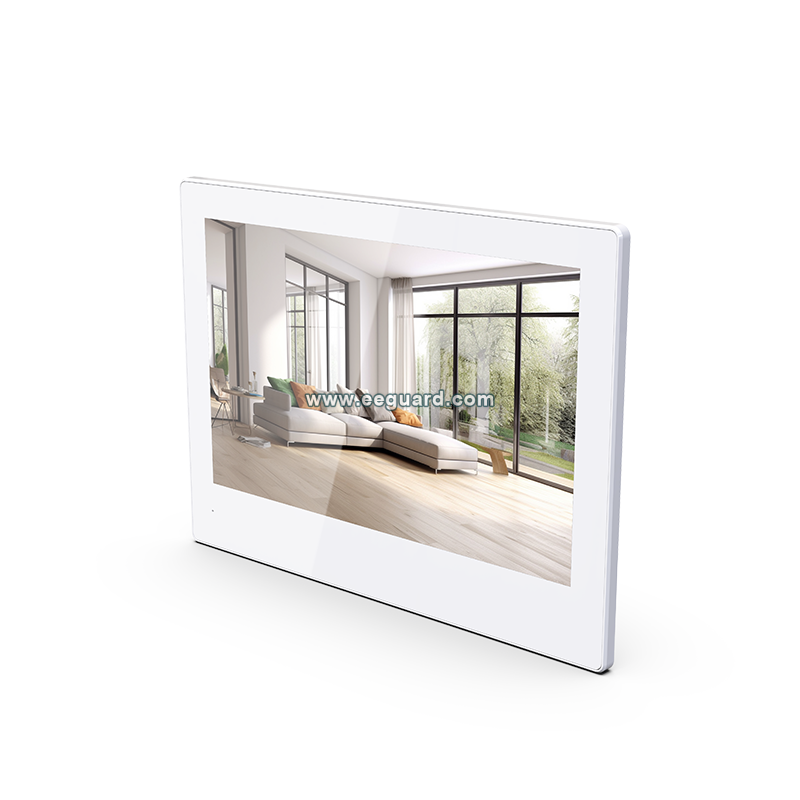

ER015ATW

1080P IPS IP/WIFI APP TUYA Plastic case Non Polarity

Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, Wi-Fi 802.11b/g/n, PLC, All In One, Central Power Supply, Non Polarity,1080P 8" colorful screen

1080P IPS IP/WIFI APP TUYA Plastic case Non Polarity

     Flash: 128MB

     RAM: 512MB

     Operating system: Linux operation system

     Display screen: 8″ colorful screen

     Display resolution: 1280x800

     Operation method: Touch screen

     Audio input: Built-in omnidirectional microphone

     Audio output: Built-in loudspeaker

     Audio compression standard: G.711U

     Audio compression rate: 64Kbps

     Audio quality: Noise suppression and echo cancellation

     PLC rate: Max.500Mbps

     Network protocol: TCP/IP, RTSP, SIP

     Built-in wifi: 2.4G 802.11 b/g/n

     Micro SD card: Max to 128G, SD 2.0 or lower version

     Power supply: 24V-36VDC PLC

     Power consumption: 10W(Max), 5W(Standby)

     Ringbell: NO (MAX AC/DC36V 4A)

     Support pixels: Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera

     Video compression standard: H.265 (default), H264

     Working temperature: -10℃-50℃

     Working humidity: 10%-90%

     Dimensions: 200x149x23.5mm


  • Parameters

     Flash: 128MB

     RAM: 512MB

     Operating system: Linux operation system

     Display screen: 8″ colorful screen

     Display resolution: 1280x800

     Operation method: Touch screen

     Audio input: Built-in omnidirectional microphone

     Audio output: Built-in loudspeaker

     Audio compression standard: G.711U

     Audio compression rate: 64Kbps

     Audio quality: Noise suppression and echo cancellation

     PLC rate: Max.500Mbps

     Network protocol: TCP/IP, RTSP, SIP

     Built-in wifi: 2.4G 802.11 b/g/n

     Micro SD card: Max to 128G, SD 2.0 or lower version

     Power supply: 24V-36VDC PLC

     Power consumption: 10W(Max), 5W(Standby)

     Ringbell: NO (MAX AC/DC36V 4A)

     Support pixels: Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera

     Video compression standard: H.265 (default), H264

     Working temperature: -10℃-50℃

     Working humidity: 10%-90%

     Dimensions: 200x149x23.5mm


1080P 8" video door phone

HD screen 1280*800

2-Wire IP Video Intercom System

Quad video recording

Support 8 panels or cameras view

Human detection

Powerful smart mobile APP talk & unlock

Support ONVIF IP cameras

Monitoring of video door bell or CCTV from mobile APP

Push notifications

Customize UI & Melody & Voice message

Button light background

Support max.128GB SD Card & flash max.100pcs picture

Lock control / Calendar / Alarm clock / No disturb

Simple DVR motion detection / Photo frame / Multimedia manager

Auto leave message function

Wi-Fi 802.11b/g/n

All in One: Just a 2-wire cable

Non Polarity: Never afraid of electric shock

Bus transmission: Expandable and flexible diagram

Central power supply: No black pigtail to home socket


ER015ATW
Customize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, Wi-Fi 802.11b/g/n, PLC, All In One, Central Power Supply, Non Polarity,1080P 8" colorful screen
