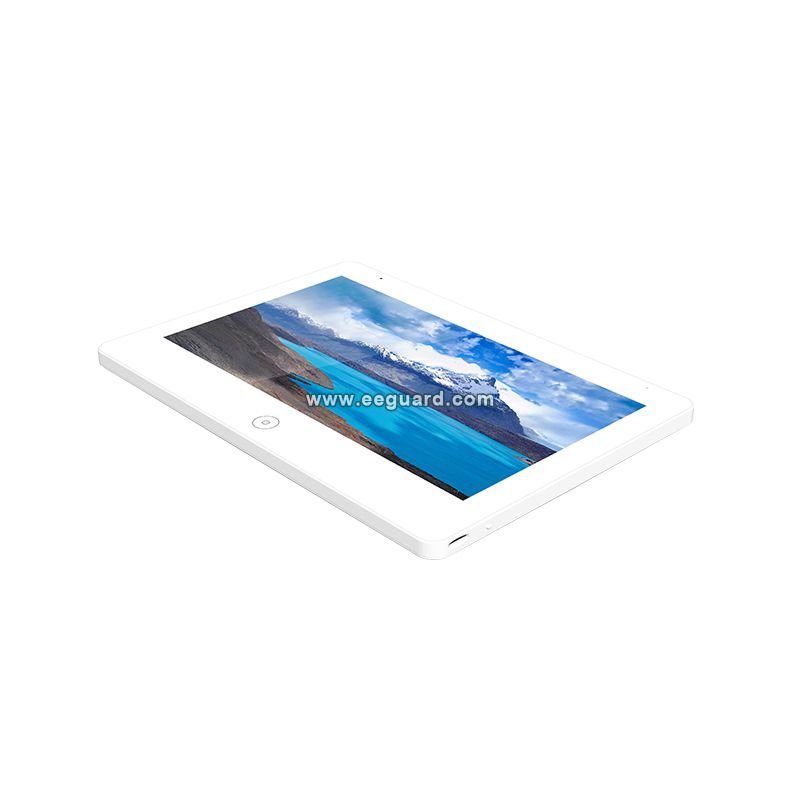

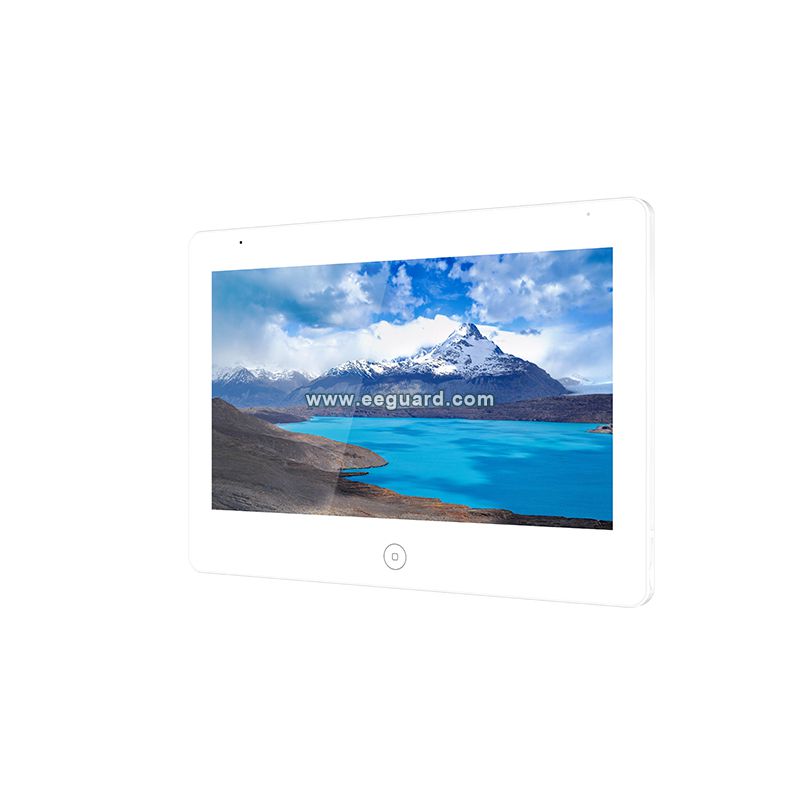

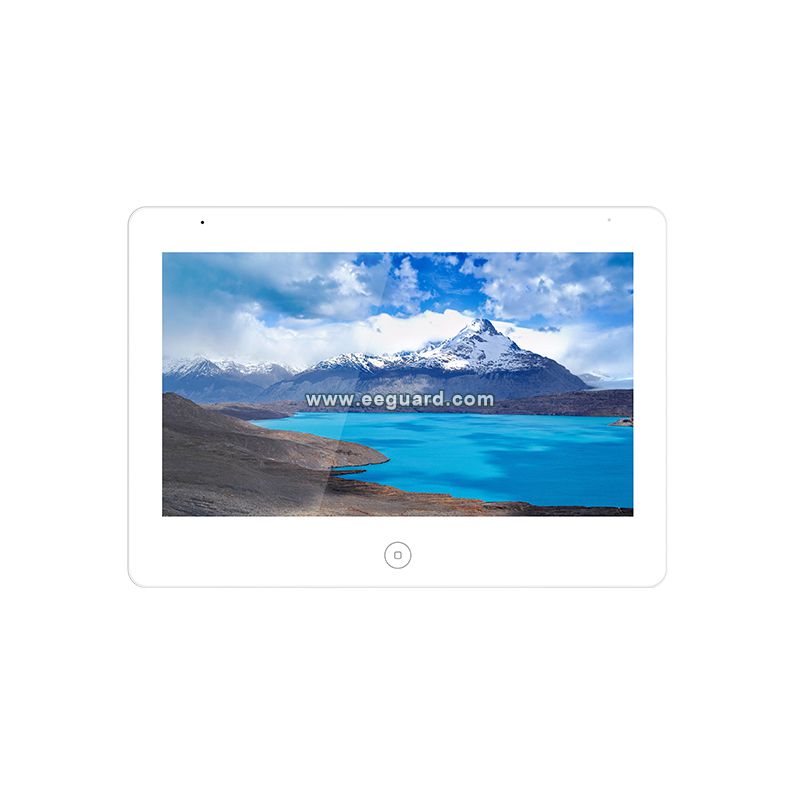

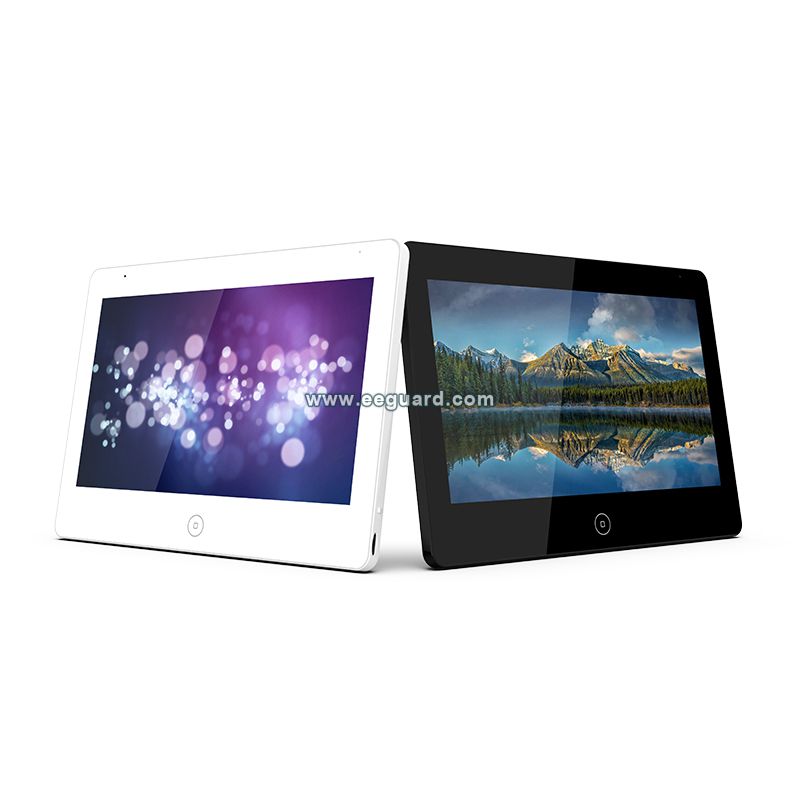

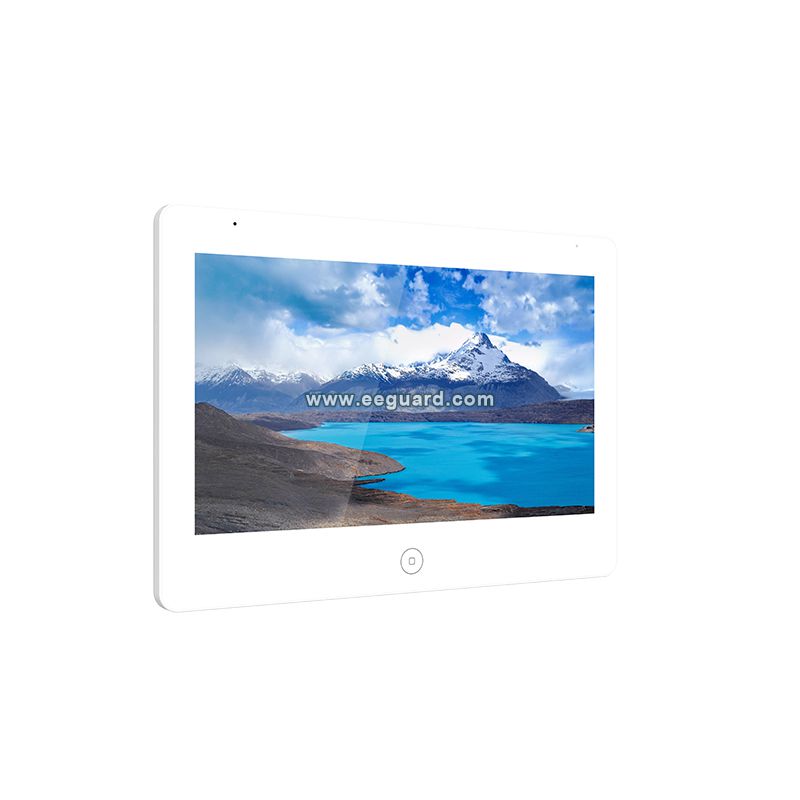

ER010ATW
1080P AHD IPS 128G TUYA Plastic case Build in WIFI/IP module 8 channels CloudCustomize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, Wi-Fi 802.11b/g/n, PLC, All In One, Central Power Supply, Non Polarity
1080P AHD IPS 128G TUYA Plastic case Build in WIFI/IP module 8 channels Cloud
- Flash： 128MB
- RAM： 512MB
- Operating system： Linux operation system
- Display screen： 10.1″ colorful screen
- Display resolution： 1024x600

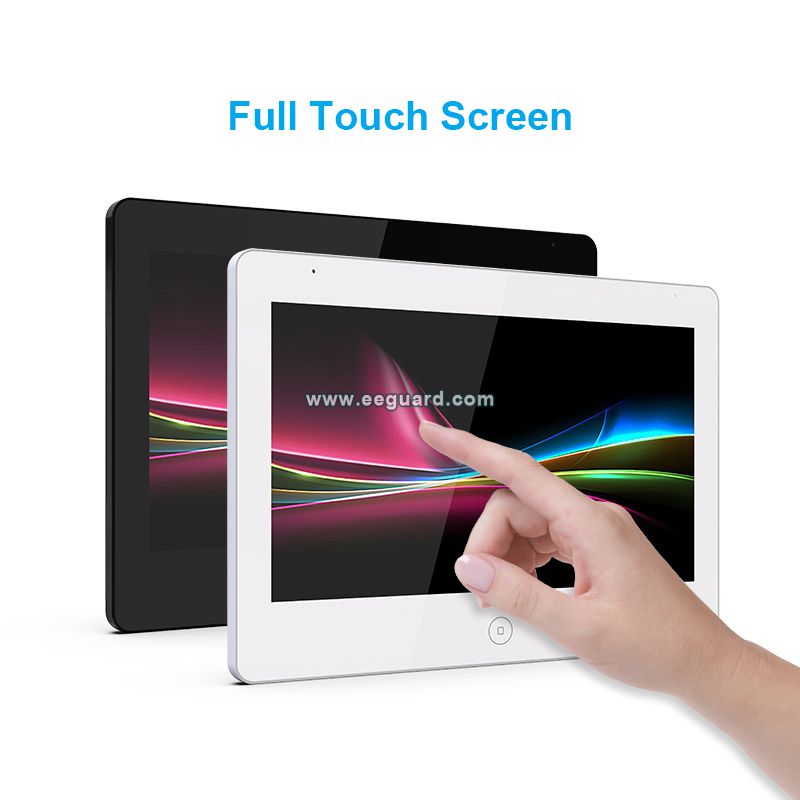

- Operation method： Touch screen

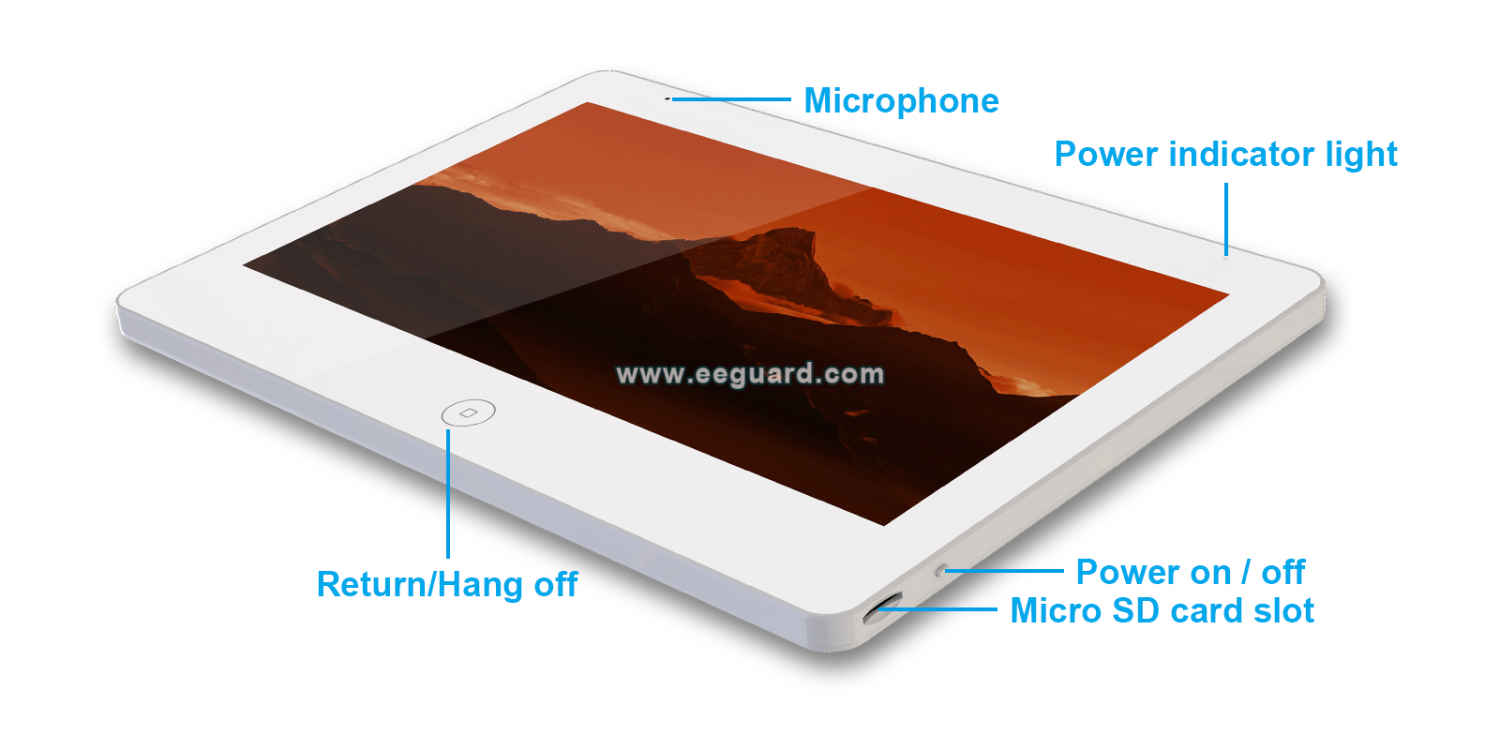

- Audio input： Built-in omnidirectional microphone
- Audio output： Built-in loudspeaker
- Audio compression standard： G.711U
- Audio compression rate： 64Kbps
- Audio quality： Noise suppression and echo cancellation
- PLC rate： Max.500Mbps
- Network protocol： TCP/IP, RTSP, SIP
- Built-in wifi： 2.4G 802.11 b/g/n
- Micro SD card： Max to 128GB, SD 2.0 or lower version
- Power supply： 24V-36VDC PLC
- Power consumption： 10W(Max), 5W(Standby)
- Ringbell： NO (MAX AC/DC36V 4A)
- Support pixels： Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera
- Video compression standard： H.265 (default), H264
- Working temperature： -10℃-50℃
- Working humidity： 10%-90%

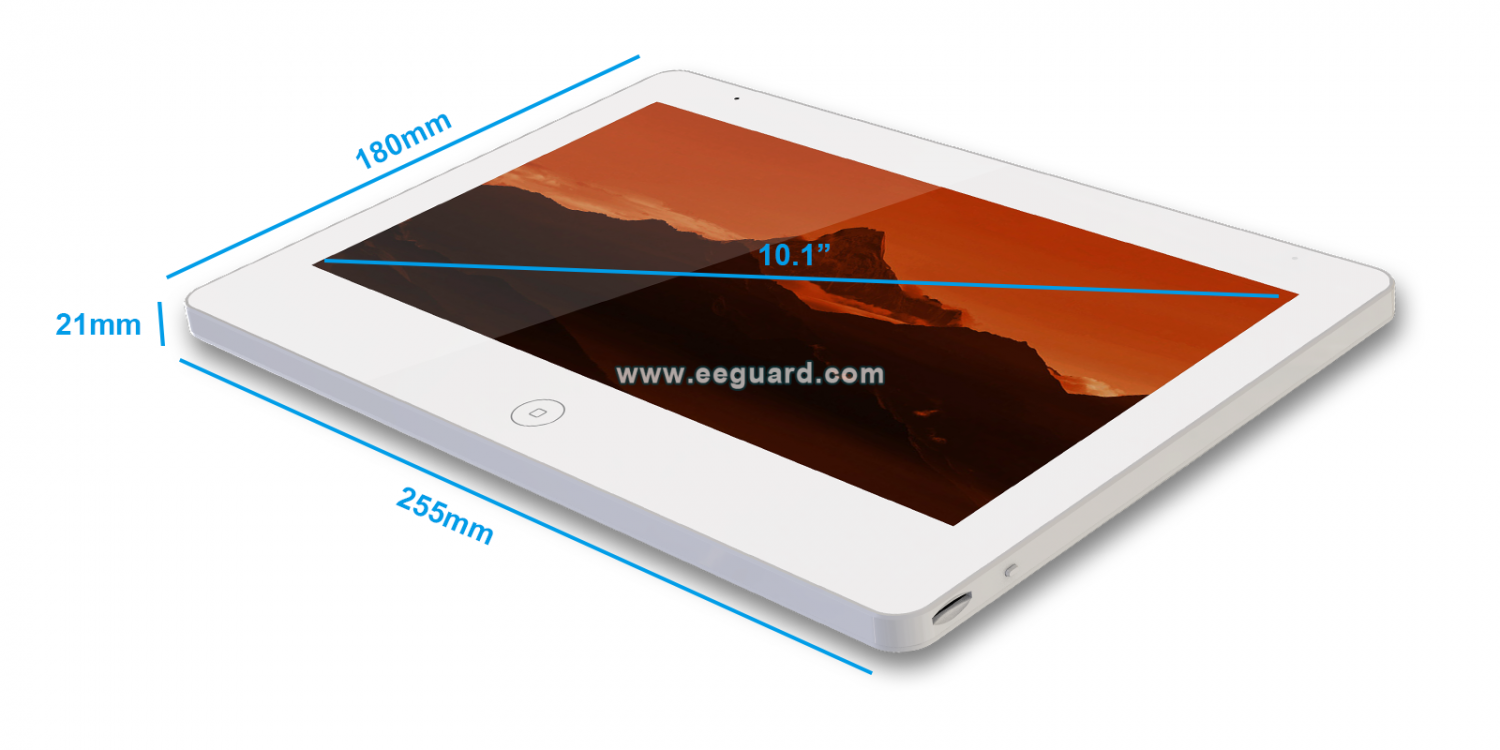

- Dimensions： 255x180x21mm
- Parameters
- Flash： 128MB
- RAM： 512MB
- Operating system： Linux operation system
- Display screen： 10.1″ colorful screen
- Display resolution： 1024x600
- Operation method： Touch screen
- Audio input： Built-in omnidirectional microphone
- Audio output： Built-in loudspeaker
- Audio compression standard： G.711U
- Audio compression rate： 64Kbps
- Audio quality： Noise suppression and echo cancellation
- PLC rate： Max.500Mbps
- Network protocol： TCP/IP, RTSP, SIP
- Built-in wifi： 2.4G 802.11 b/g/n
- Micro SD card： Max to 128GB, SD 2.0 or lower version
- Power supply： 24V-36VDC PLC
- Power consumption： 10W(Max), 5W(Standby)
- Ringbell： NO (MAX AC/DC36V 4A)
- Support pixels： Mainstream: Max 5MP 25FPS camera, Substream: Max 1MP 30FPS camera
- Video compression standard： H.265 (default), H264
- Working temperature： -10℃-50℃
- Working humidity： 10%-90%
- Dimensions： 255x180x21mm
Memory 10.1" video door phone with touch screen
2-Wire IP Video Intercom System
Quad video recording
Support 8 panels or cameras view
Human detection
Powerful smart mobile APP talk & unlock
Support ONVIF IP cameras
Monitoring of video door bell or CCTV from mobile APP
Push notifications
Customize UI & Melody & Voice message
Button light background

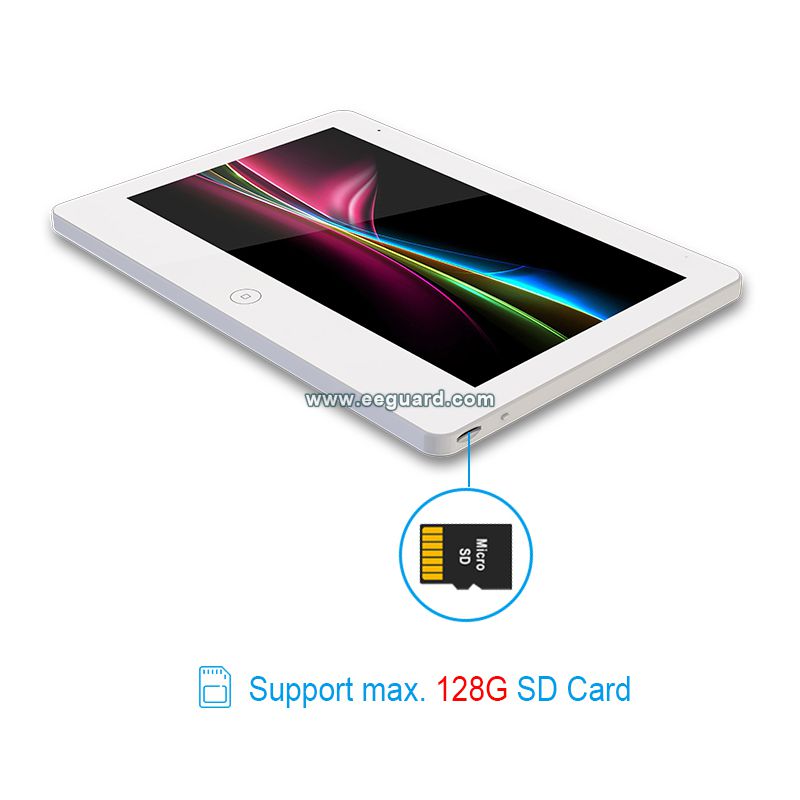

Support max.128GB SD Card & flash max.500pcs picture
Lock control / Calendar / Alarm clock / No disturb
Simple DVR motion detection / Photo frame / Multimedia manager
Auto leave message function
Wi-Fi 802.11b/g/n
All in One: Just a 2-wire cable
Non Polarity: Never afraid of electric shock
Bus transmission: Expandable and flexible diagram
Central power supply: No black pigtail to home socket
