ER009HDMW
1080P AHD IPS CVBS 800TVL 128G TUYA Metal painting case Metal case Build in WIFI/IP moduleCustomize UI & Melody & Voice message, Simple DVR motion detection/Photo frame/Multimedia manager, 10/100Mbps Ethernet/Wi-Fi 802.11 a/b/g/n, 15 VDC
1080P AHD IPS CVBS 800TVL 128G TUYA Metal painting case Metal case Build in WIFI/IP module
- Screen： 7" IPS Screen
- TFT Resolution： 1024x600
- Signal Supports： 800TVL / 1080P
- Signal Formats： CVBS / AHD
- Indoor Monitor Unlock Release： Supports
- Outdoor Panel Unlock Release： Supports

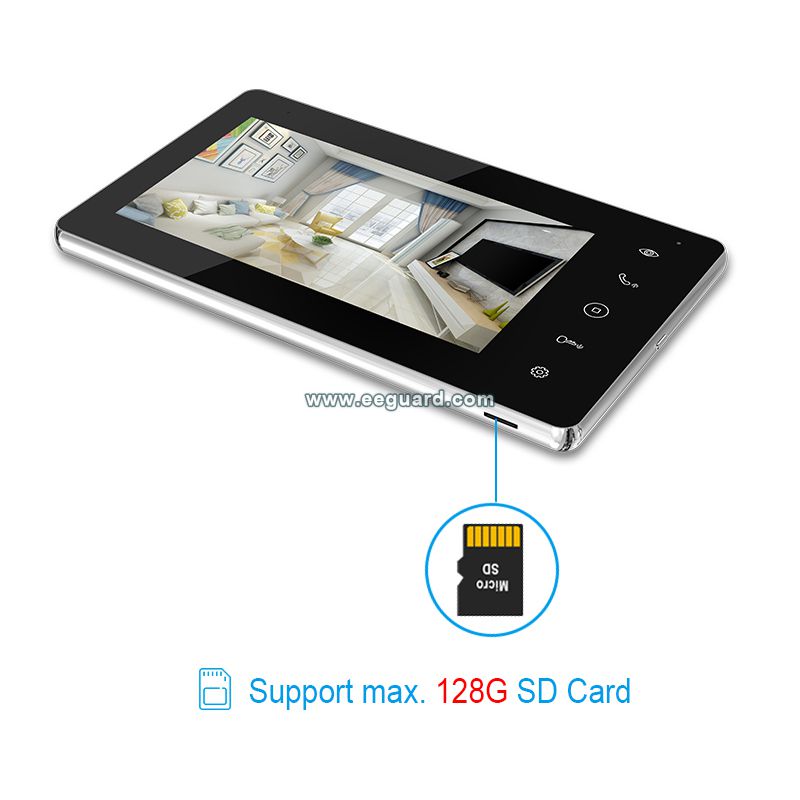

- Micro SD Card： Supports
- Video & Image Capture： Supports
- Connection： 4 Wires / CAT-5
- Network Interface： 10M / 100M self-adaption
- Operating frequencies： 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
- IEEE standards： IEEE 802.11 a/b/g/n
- Networking Way： WIFI / RJ45
- Max Wire Length Connection： 100 Meters
- Max Additional Monitors： 3
- Video Channels： 4
- Power Consumption： 12W(Max), 4.5W(Standby)
- Power Supply： AC100-240V 50/60Hz / DC15V/0.8A

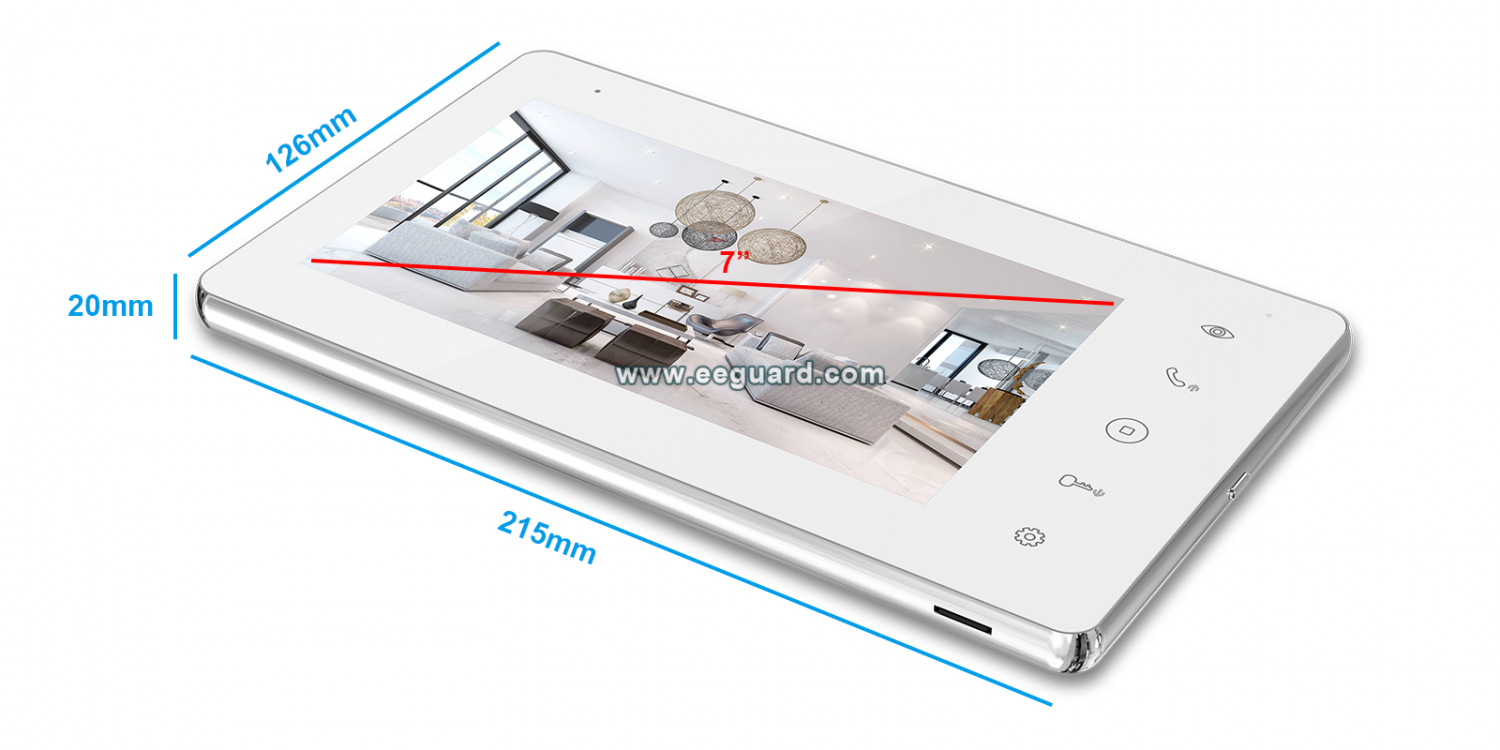

- Dimension： 215x126x20mm
- Parameters
- Screen： 7" IPS Screen
- TFT Resolution： 1024x600
- Signal Supports： 800TVL / 1080P
- Signal Formats： CVBS / AHD
- Indoor Monitor Unlock Release： Supports
- Outdoor Panel Unlock Release： Supports
- Micro SD Card： Supports
- Video & Image Capture： Supports
- Connection： 4 Wires / CAT-5
- Network Interface： 10M / 100M self-adaption
- Operating frequencies： 2.4GHz-2.4835GHz / 5.15GHz-5.85GHz
- IEEE standards： IEEE 802.11 a/b/g/n
- Networking Way： WIFI / RJ45
- Max Wire Length Connection： 100 Meters
- Max Additional Monitors： 3
- Video Channels： 4
- Power Consumption： 12W(Max), 4.5W(Standby)
- Power Supply： AC100-240V 50/60Hz / DC15V/0.8A
- Dimension： 215x126x20mm

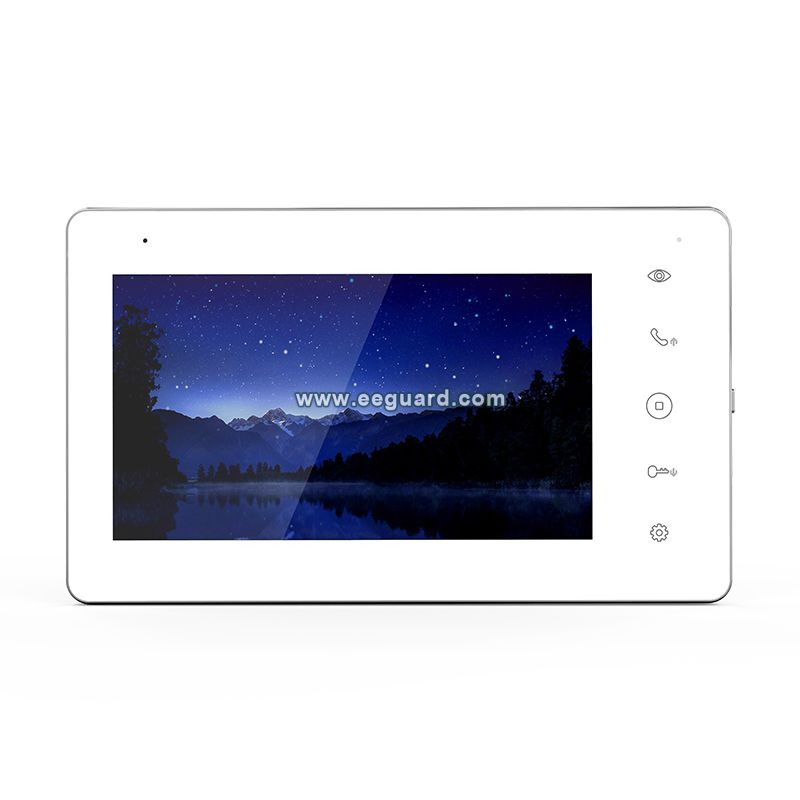

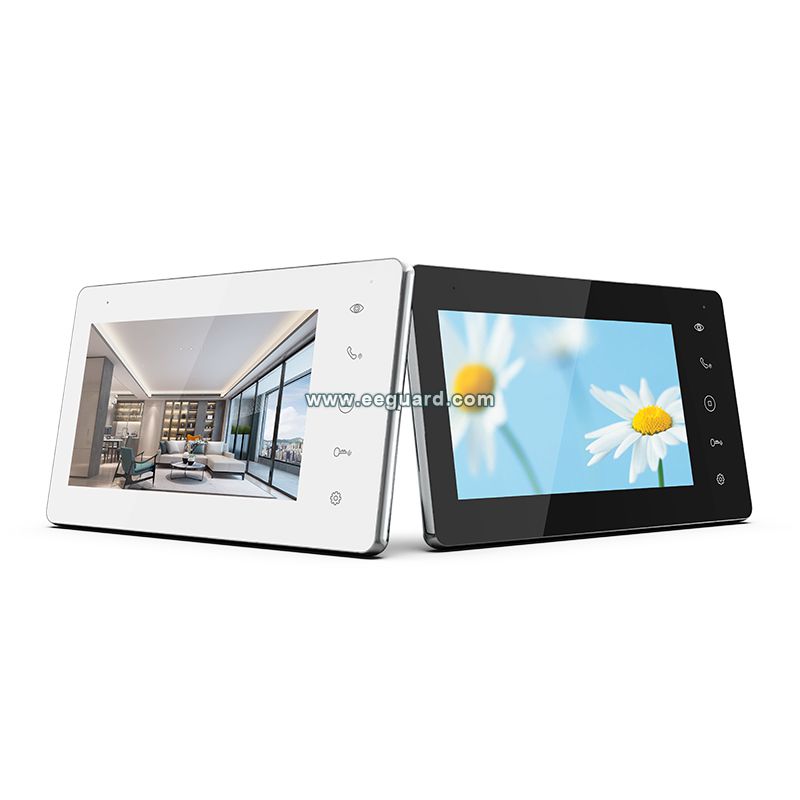

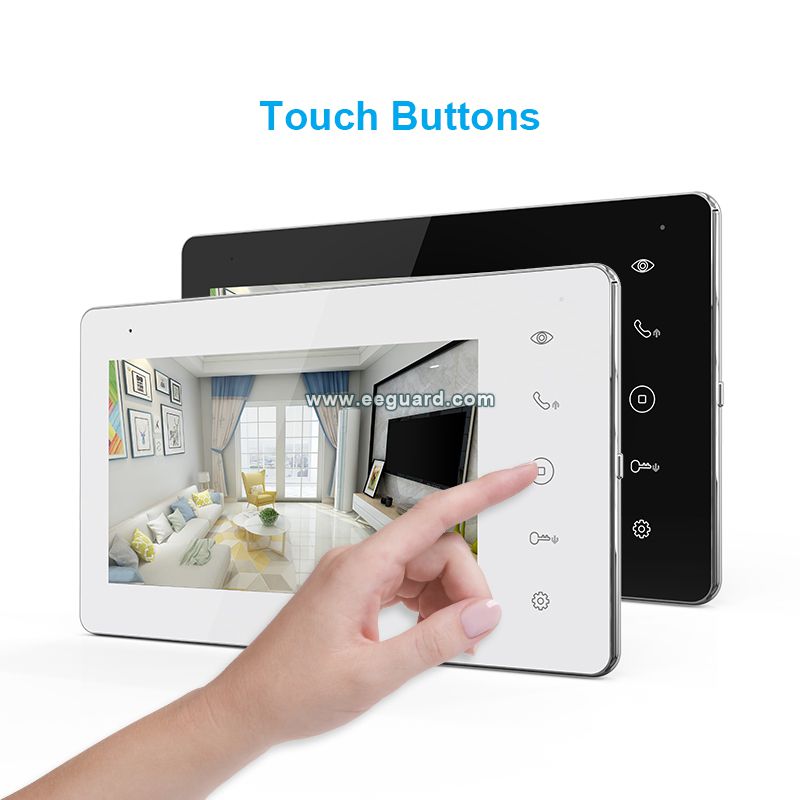

1080P 7" video door phone with touch buttons

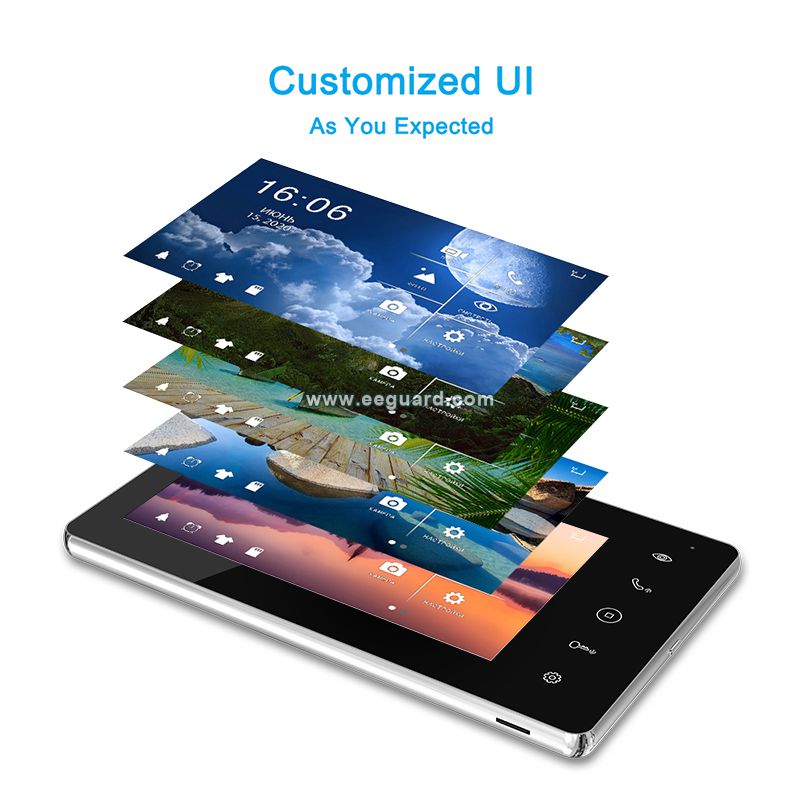

Customize UI & Melody & Voice message
Button light background
With TUYA APP control
10/100Mbps Ethernet
Build in WiFi Dual-Brand 2.4G & 5G
Two-way talk
Easy to operation
Lock control / Broadcast / Calendar / Alarm clock / No disturb
Monitor doorbell or CCTV cameras
Door-call transfers to other monitors
Event preview with advanced pre-roll video
Human motion detection and alerts
Make calls between monitors
Monitor listening to another monitor
Simple DVR motion detection/Photo frame/Multimedia manager
Auto leave message function
DC15V/0.8A / AC100-240V 50/60Hz (Optional)
Supports:
* 2 outdoor doorbells+4 indoor monitors+2 CCTV cameras
* 1 outdoor doorbell+4 indoor monitors+3 CCTV cameras
* Door Panel unlock & Indoor monitor unlock
