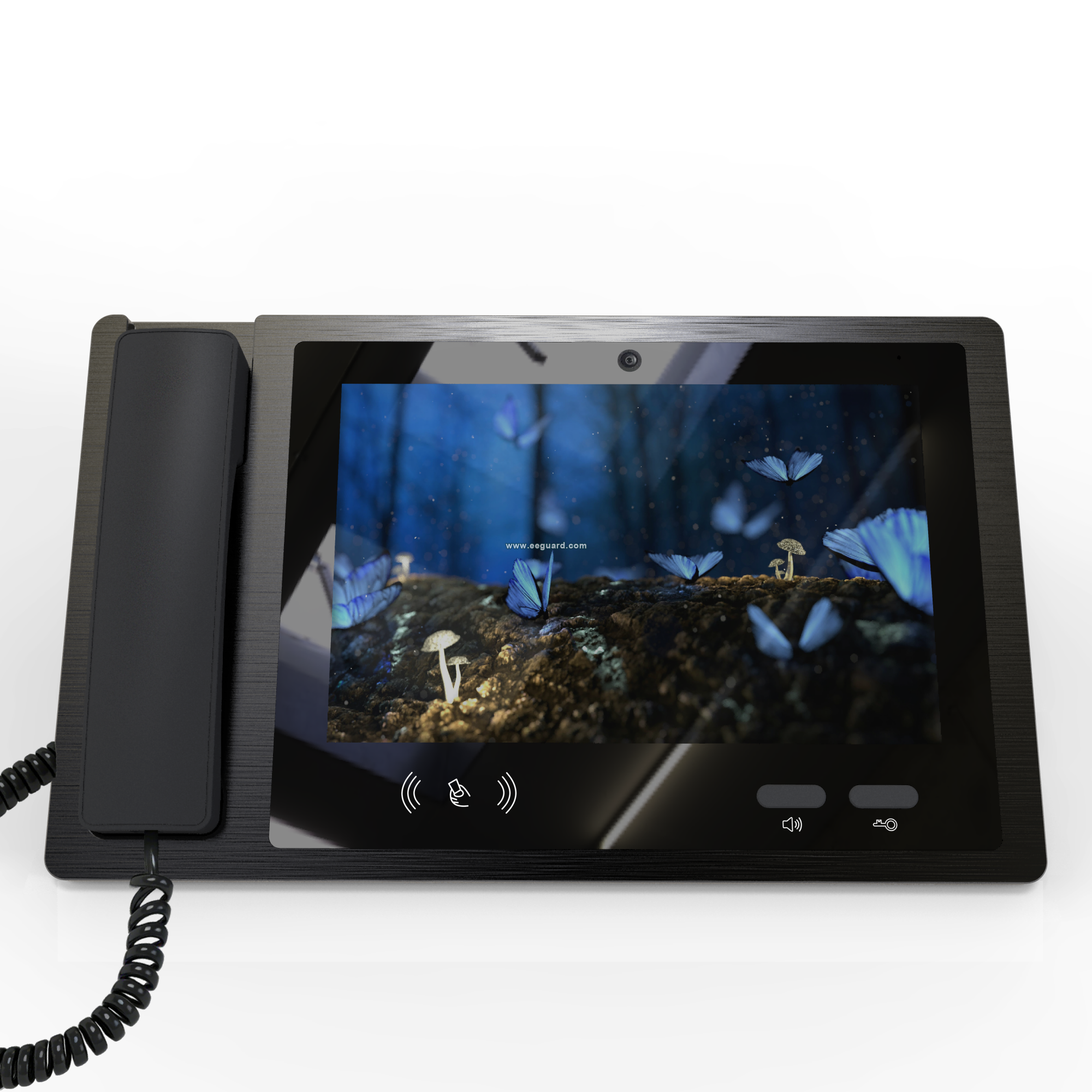

EM002_IP Master Station

System parameters	Processor	High-performance embedded SOC processor
	Operation system	Embedded linux operation system
	Screen	10.1' IPS screen
	TFT resolution	1280*800
Video parameters	Lens	1/2.9' 2MP CMOS low illumination camera
	FOV	H:105° ,V:72°,D:120°
	WDR	Support
	Video compression standard	H.265 (default), H.264
	Noise reduction	3D noise reduction
	Pixel	Main stream: 1920 × 1080p, 720p, Sub stream: 640x360
Audio parameters	Audio intercom mode	Full duplex
	Audio compression standard	G.711 U
	Audio compression rate	64 Kbps
	Audio quality	Noise suppression and echo cancellation
	Specification of speaker	1W/8 ohm
	Specification of microphone	-38dB±2/2V
Device interfaces	Network interface	1, 10M / 100M adaptive belt POE
	Network protocol	TCP/IP, RTSP, SIP2.0
	USB	1, USB 2.0 Type A
	Power interface	DC12-15V
General	RFID Card	125KHZ （ID）/ 13.56MHZ（IC）
		Em marine （ID） / Mifare（IC）
		Supports ISO/IEC 18000-2 type A （ID）
		Supports ISO/IEC 14443 type A 106kb/s（IC）
		Number of cards supported: 20000
		Card reading distance: ≤2cm
	Facial recognition distance	≤2M
	Number of facial photos	10000
	Micro SD card	Max to 512GB, SD 2.0 or lower version
	Outdoor station connection + CCTV camera connection	36
	I/P	POE IEEE802.3af/DC12-15V，10W
	Working temperature	-40°C to +60°C
	Working humidity	10%RH– 90%RH (non-condensing)
	Housing material	Metal frame/Tempered glass
	Product size	344.721064.3mm
	Flush box dimensions	344.7210151.7mm
	Weight	2700g
