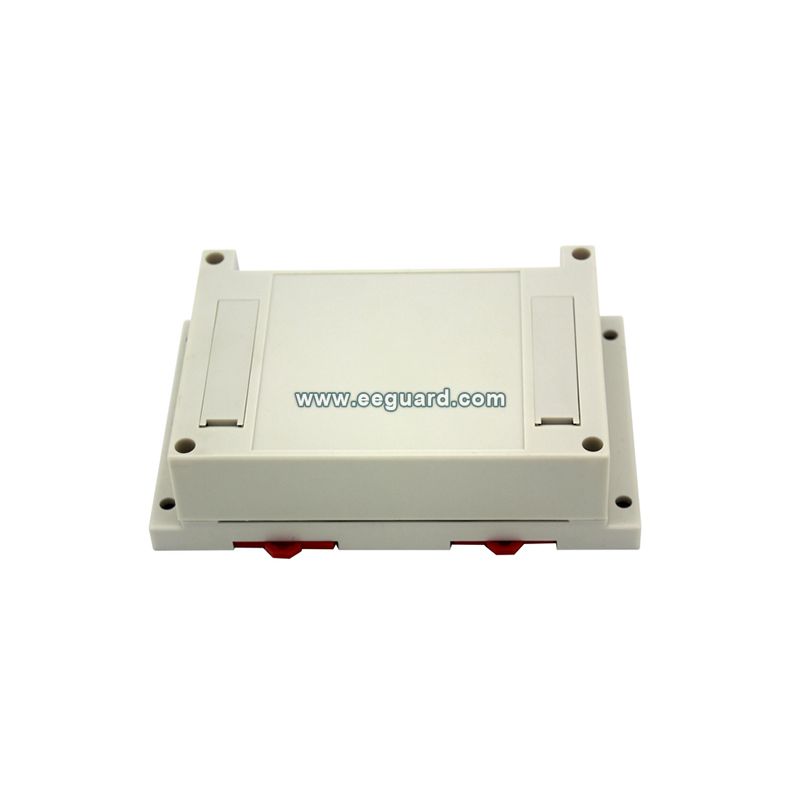

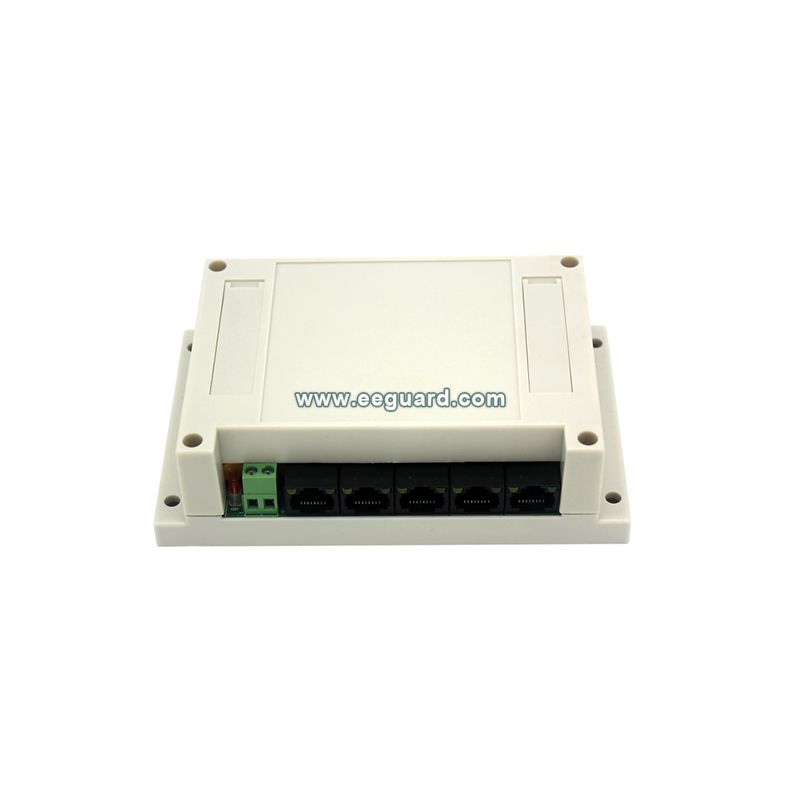

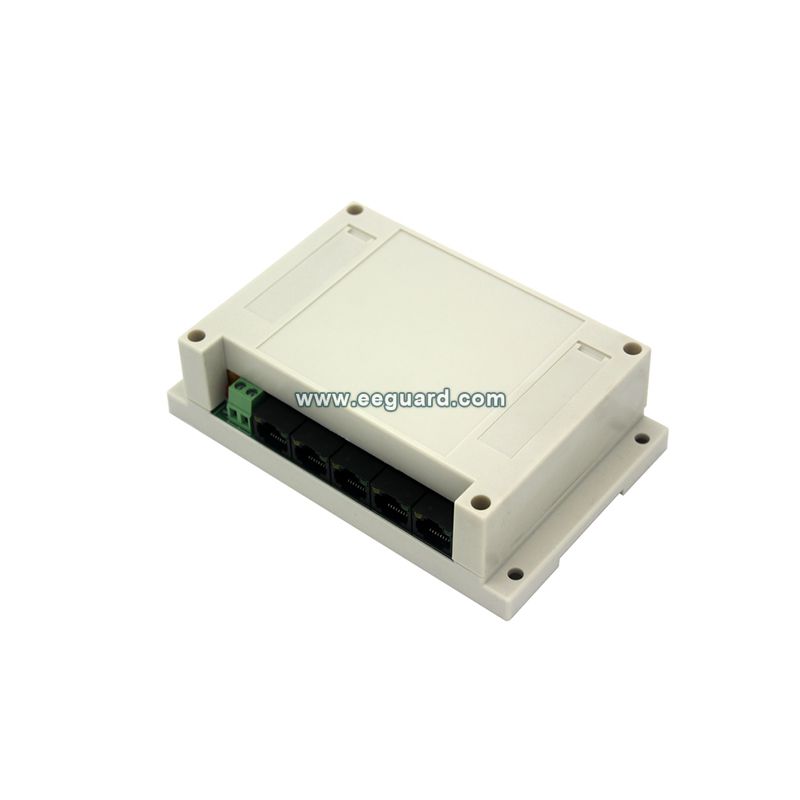

EH009-Apartment Panel Distributor

4 ways apartment outdoor panel distributor, With 4 ports for apartment outdoor panel, With power indicator

  • Voltage： DC18-36V/2W
  • Power： 430mA(Max)，30mA(Standby)
  • Working Temperature： -30℃~+60℃
  • Operating Humidity： 0%~95%
  • Audio/Video Transmission Mode： Differential transmission
  • Audio/Video Signal Isolation Mode： Relay isolation
  • Communication Mode： Bus Transmission
  • Communication Signal Isolation Mode： Optoelectronic isolation
  • Dimension： 145x90x40mm

  • Parameters
  • Voltage： DC18-36V/2W
  • Power： 430mA(Max)，30mA(Standby)
  • Working Temperature： -30℃~+60℃
  • Operating Humidity： 0%~95%
  • Audio/Video Transmission Mode： Differential transmission
  • Audio/Video Signal Isolation Mode： Relay isolation
  • Communication Mode： Bus Transmission
  • Communication Signal Isolation Mode： Optoelectronic isolation
  • Dimension： 145x90x40mm

* Using for bus isolation, signal transmission, AV channels switch

* Using for extending more unit outdoor panels

* Outdoor panel distributor


Power: 18-36V DC/1W-3W

Communication mode: CAN bus

Dimension: 145*90*40mm

Support outdoor panel quantity: 4

Support vertical distributer quantity: 99

Operating temperature: -25℃ to + 50℃

EH009-Apartment Panel Distributor
4 ways apartment outdoor panel distributor, With 4 ports for apartment outdoor panel, With power indicator
