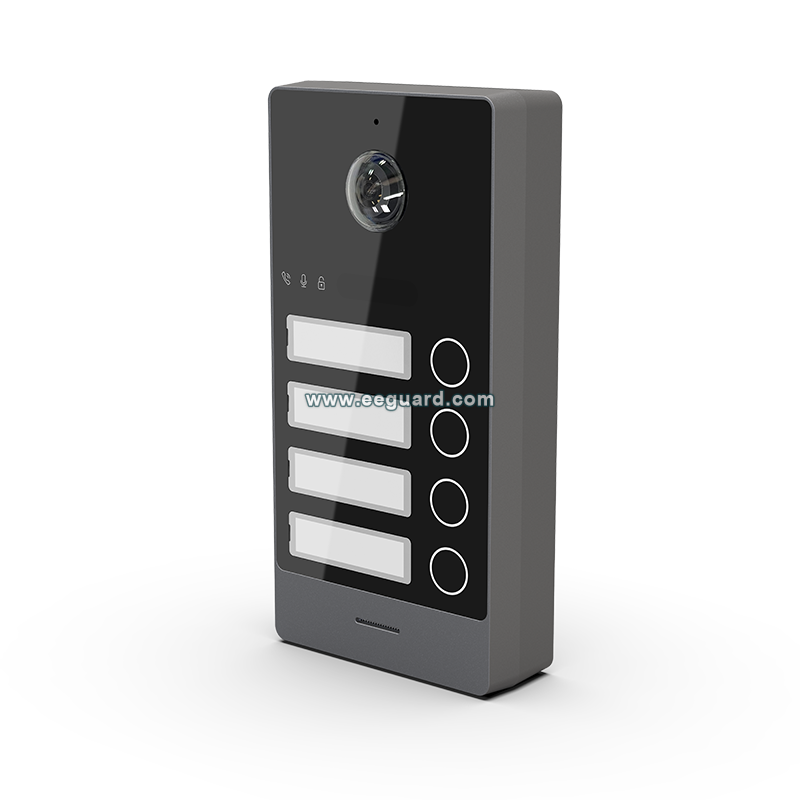

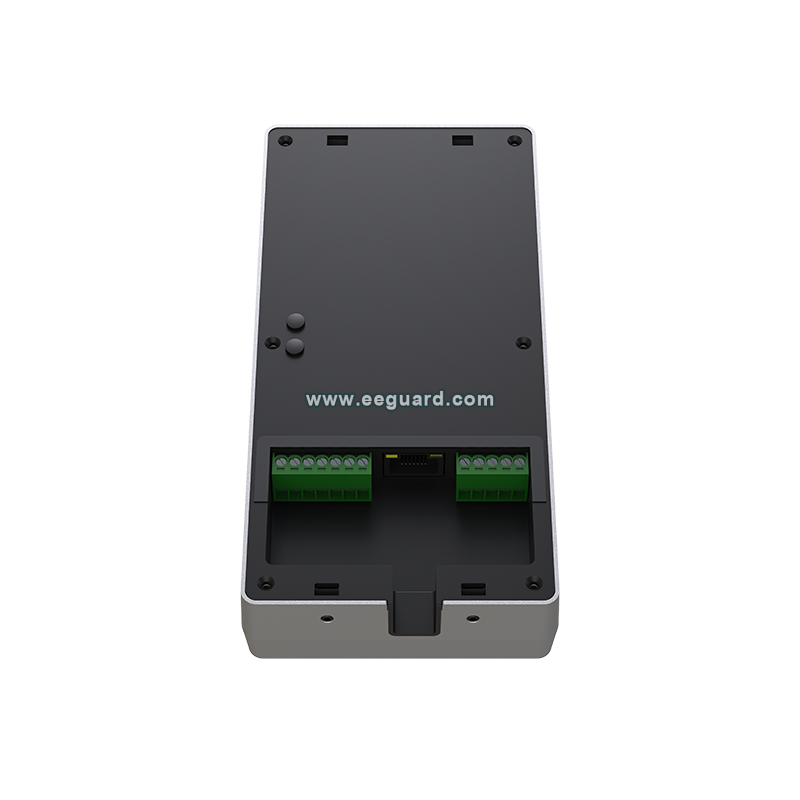

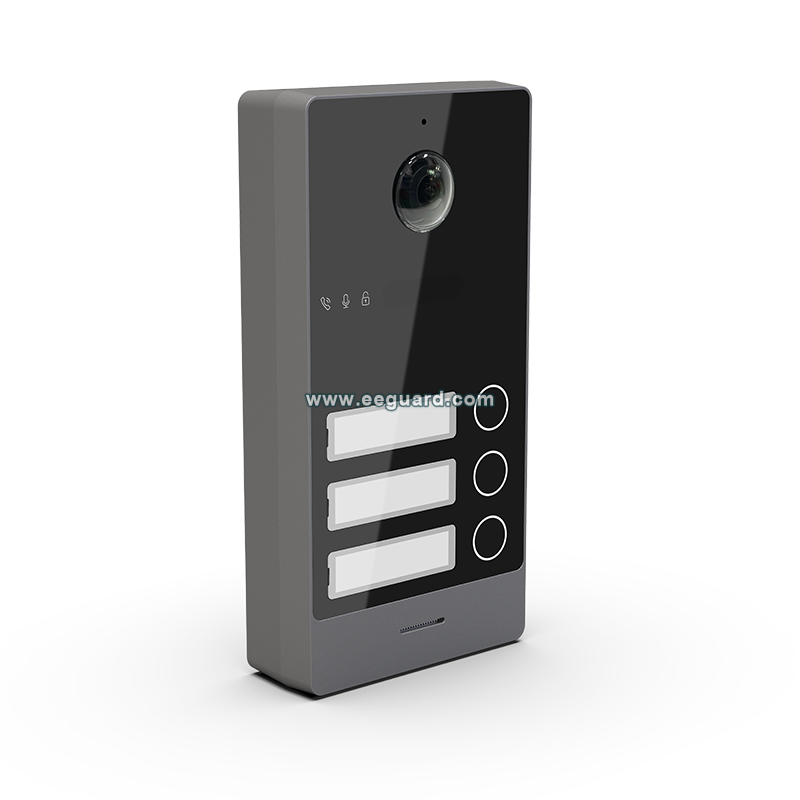

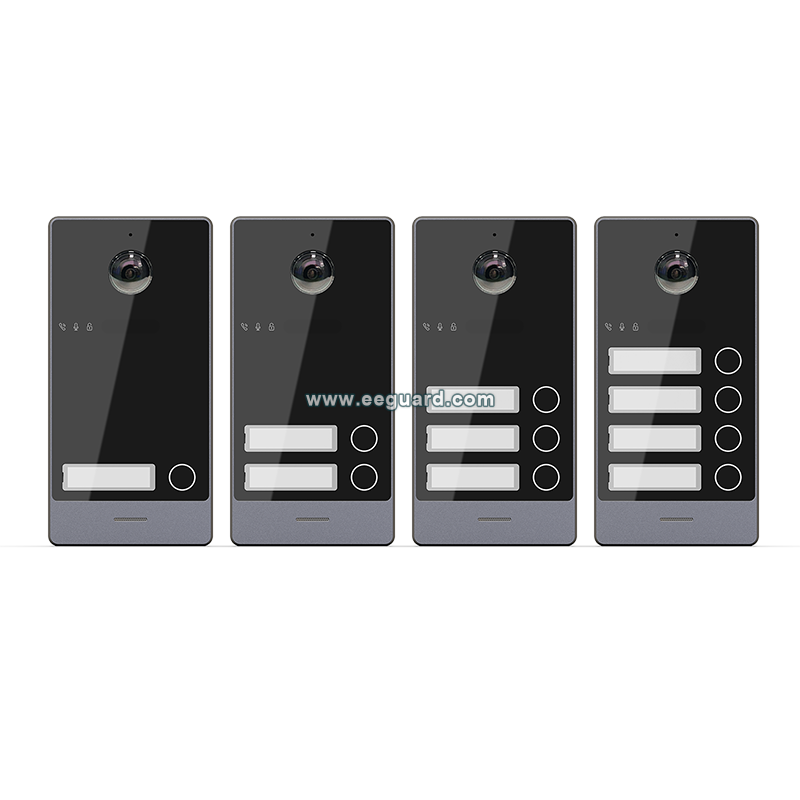

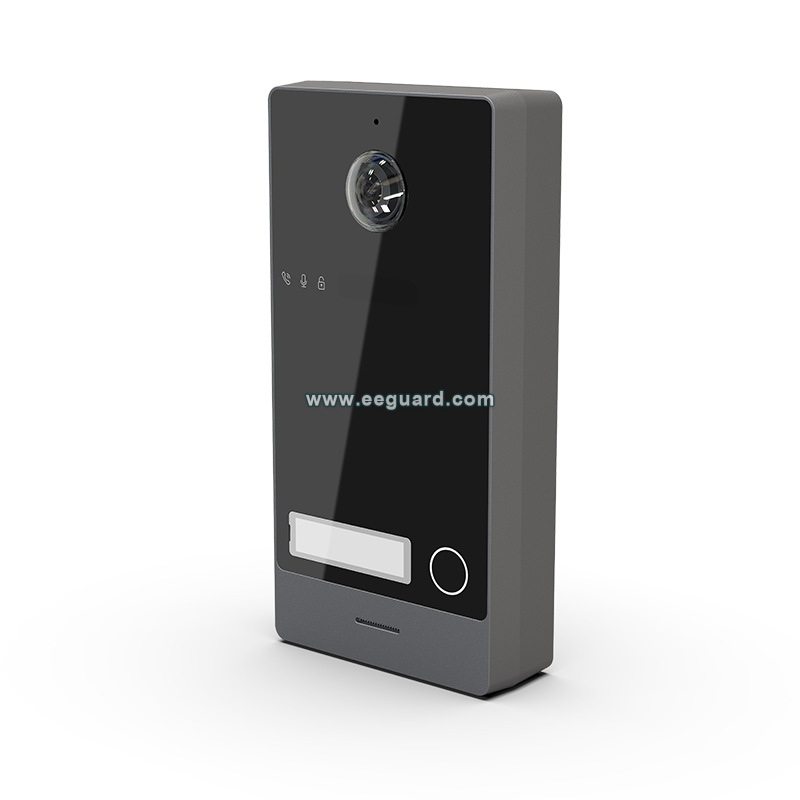

ED008-1/2/3/4B
1080P IP/WIFI APP TUYAIP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
1080P IP/WIFI APP TUYA
Processor： High-Performance Embedded SOC Processor
Operation system： Embedded Linux Operation System
Network interface： 10M/100M adaptive
Video compression standard： H.265 (default), H264
Resolution： 1920x1080
Video frame rate： 25 fps
Audio intercom mode： Full duplex
Audio compression standard： G.711 U
Audio compression rate： 64 Kbps
Audio quality： Noise Suppression and Echo Cancellation
Light supplement mode： IR supplement
Ringbell： NO (MAX AC/DC36V 4A) (Optional)
Lock： NO/NC (Max AC/DC36V 4A)
Gate： NO (MAX AC/DC36V 4A) (Optional)
Speaker： 1W/8 ohm
Microphone： -38dB±2/2V
Power supply： POE IEEE 802.3af / 15V, 0.8A
Angle of view:H:125°, V:72° / H:150°
Power consumption： 4.5W(Max), 3W(Standby)
Family max.： 4
Working temperature： -30°C~+60°C
Working humidity： 10% - 90%
IP protection level： IP65
Dimensions： 162x82x29mm
- Parameters
Processor： High-Performance Embedded SOC Processor
Operation system： Embedded Linux Operation System
Network interface： 10M/100M adaptive
Video compression standard： H.265 (default), H264
Resolution： 1920x1080
Video frame rate： 25 fps
Audio intercom mode： Full duplex
Audio compression standard： G.711 U
Audio compression rate： 64 Kbps
Audio quality： Noise Suppression and Echo Cancellation
Light supplement mode： IR supplement
Ringbell： NO (MAX AC/DC36V 4A) (Optional)
Lock： NO/NC (Max AC/DC36V 4A)
Gate： NO (MAX AC/DC36V 4A) (Optional)
Speaker： 1W/8 ohm
Microphone： -38dB±2/2V
Power supply： POE IEEE 802.3af / 15V, 0.8A
Angle of view:H:125°, V:72° / H:150°
Power consumption： 4.5W(Max), 3W(Standby)
Family max.： 4
Working temperature： -30°C~+60°C
Working humidity： 10% - 90%
IP protection level： IP65
Dimensions： 162x82x29mm
Household max.:1/2/3/4
Camera： CMOS Low Illumination 2 MP HD Colorful Camera
Angle of view:H:125°, V:72° / H:150°
Supplement light:Smart IR
Video compression standard:H.265 (default), H.264
Gate:NO/NC (MAX AC/DC30V 4A)
Lock control:NO (MAX DC12V 700mA)
External chime:Support
Exit button:Support
Door contact:Support
Tamper alarm:Support
Protection:IP65, IK07
Ethernet:10M/100Mbps
Installation:Surface
Product size:162x82x29mm
Materials:Aluminum
Working temperature:--30°C~+60°C
Power supply:POE IEEE 802.3AF; DC12-15V, 7W
