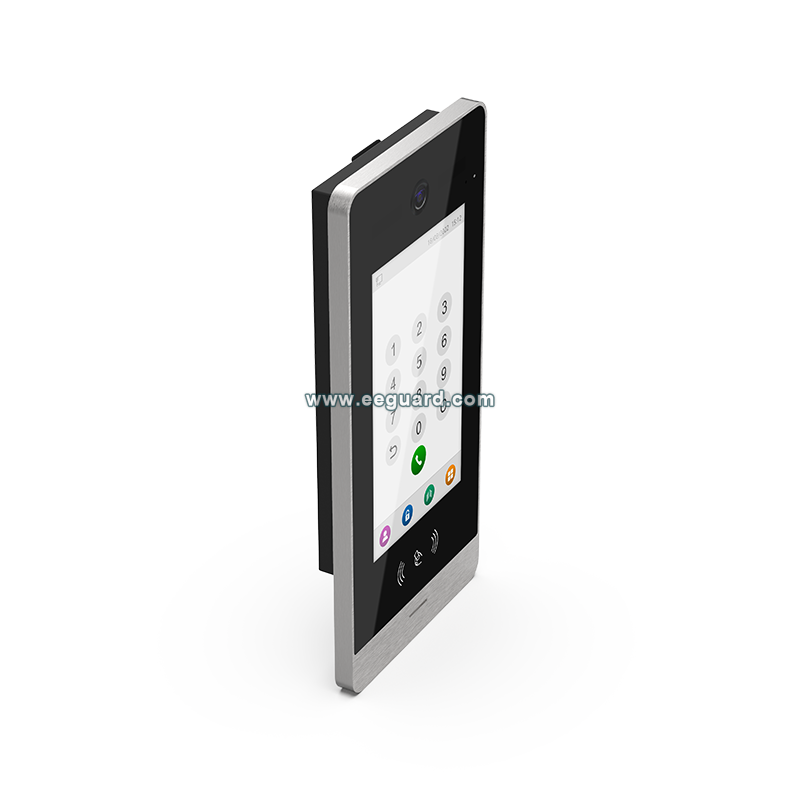

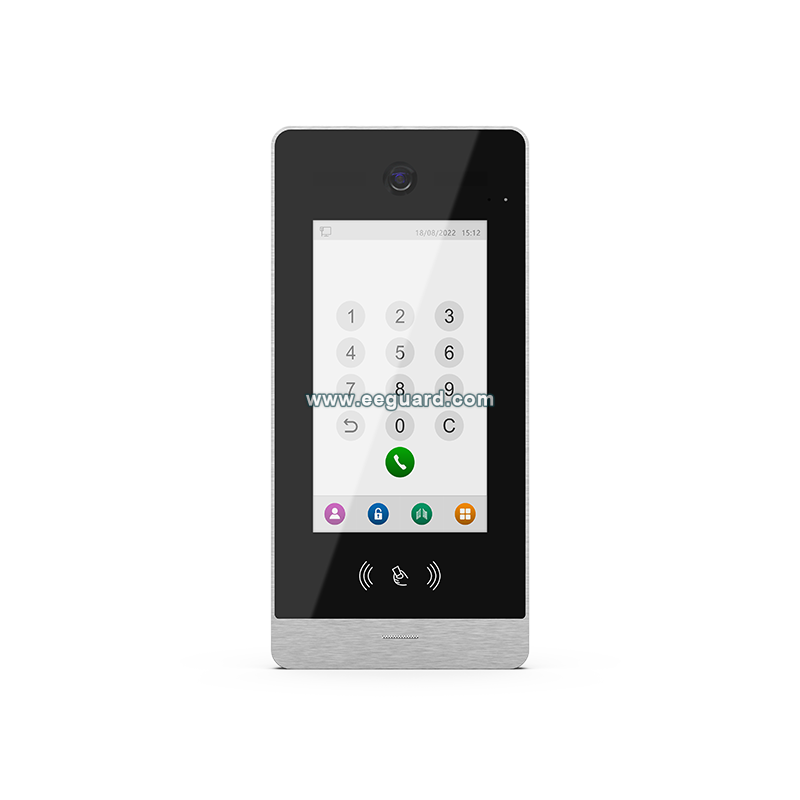

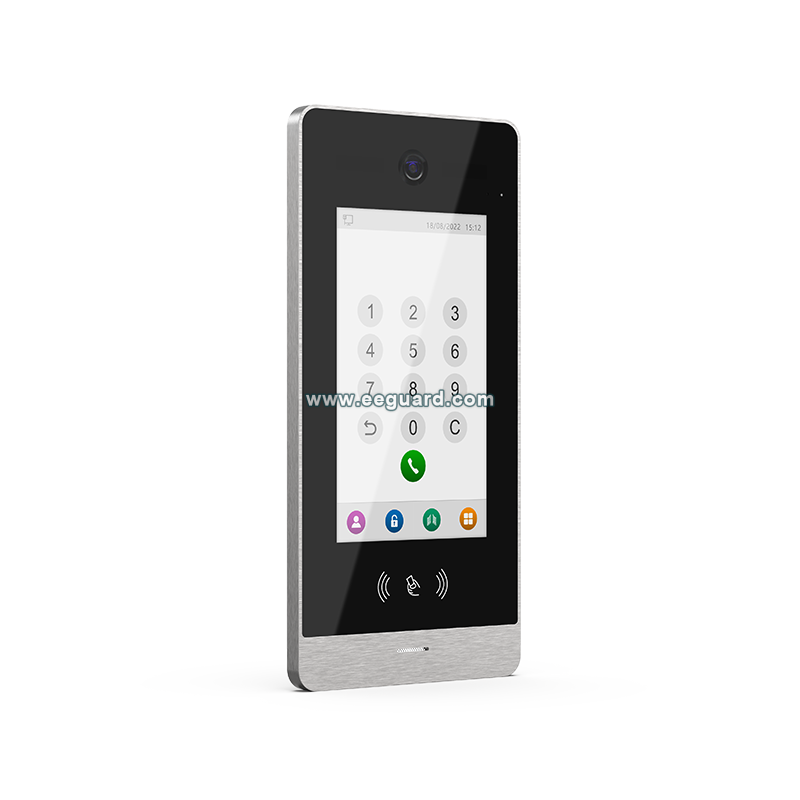

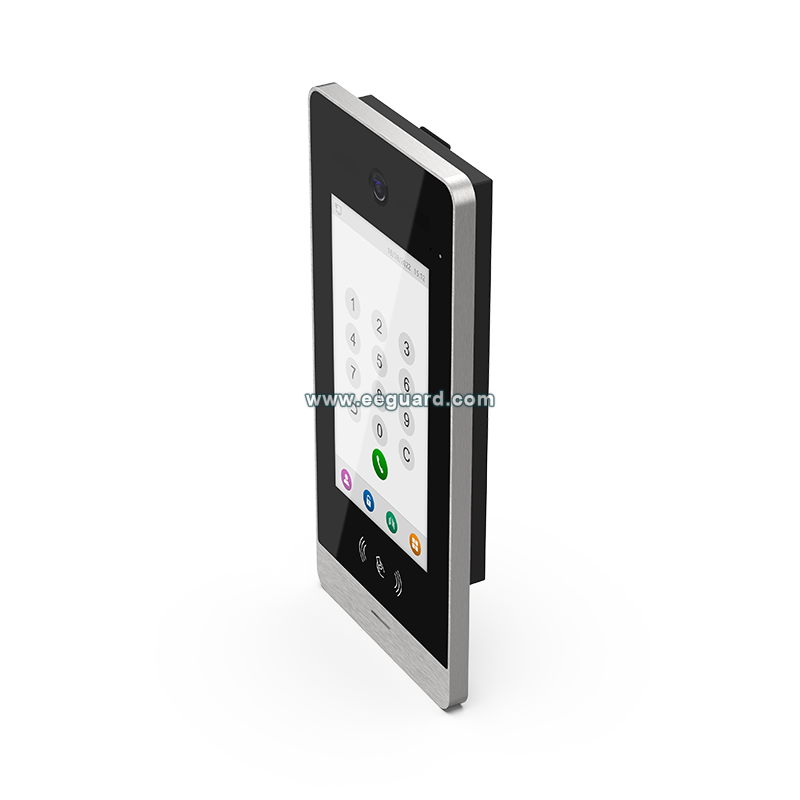

ED006BID/IC

1080P IPS Metal case ID/IC Unlock

IP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne,7" screen display

1080P IPS Metal case ID/IC Unlock

    Household max.:9999

    Camera: CMOS Low Illumination 2 MP HD Colorful Camera

    Angle of view:H:125°, V:72°

    Screen:7” IPS 1024x600

    Supplement light:Smart IR

    Reader:Em marine / Mifare card

    Keypad:Touch screen

    Video compression standard:H.265 (default), H.264

    Wiegand:Support

    Gate:NO/NC (MAX AC/DC30V 4A)

    Lock control:NO (MAX DC12V 700mA)

    External chime:Support

    Exit button:Support

    Door contact:Support

    Tamper alarm:Support

    Protection:IP65, IK07

    Ethernet:10M/100Mbps

    Installation:Flush

    Product size:268x128x26mm

    Materials:Stainless steel

    Working temperature:-40°C ~ +60°C

    Power supply:POE IEEE 802.3af / DC15V, 0.8A


  • Parameters

    Household max.:9999

    Camera: CMOS Low Illumination 2 MP HD Colorful Camera

    Angle of view:H:125°, V:72°

    Screen:7” IPS 1024x600

    Supplement light:Smart IR

    Reader:Em marine / Mifare card

    Keypad:Touch screen

    Video compression standard:H.265 (default), H.264

    Wiegand:Support

    Gate:NO/NC (MAX AC/DC30V 4A)

    Lock control:NO (MAX DC12V 700mA)

    External chime:Support

    Exit button:Support

    Door contact:Support

    Tamper alarm:Support

    Protection:IP65, IK07

    Ethernet:10M/100Mbps

    Installation:Flush

    Product size:268x128x26mm

    Materials:Stainless steel

    Working temperature:-40°C ~ +60°C

    Power supply:POE IEEE 802.3af / DC15V, 0.8A


Video intercom functions

Wide viewing angle

Self-adaptive infrared light supplement

High-performance embedded SOC processor

Full duplex voice intercom

Support 9999 apartments

Can control a lock relay, a GATE relay

Support ID/IC Cards Unlock

Support Password Unlock

Vandal-proof with full metal case

Support anti-disassembly alarm function

Waterproof IP65

IR supplement

7" screen display

ID/IC INTERFACE:

125KHZ (ID) / 13.56MHZ (IC)

Em marine (ID) / Mifare (IC)

Supports ISO/IEC 18000-2 type A (ID)

Supports ISO/IEC 14443 type A 106kb/s (IC)


ED006BID/IC
IP65 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne,7" screen display
