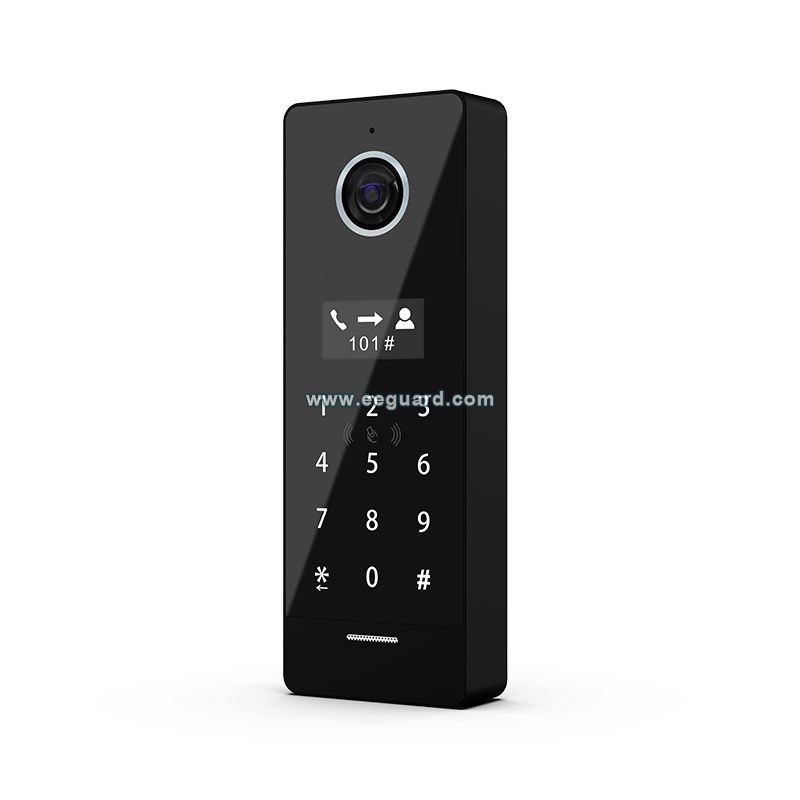

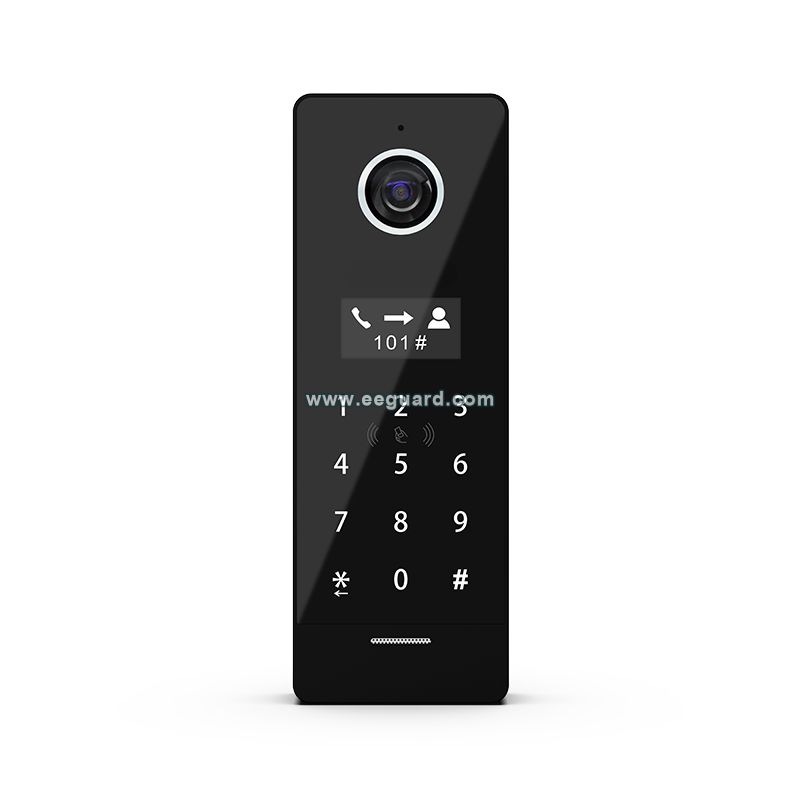

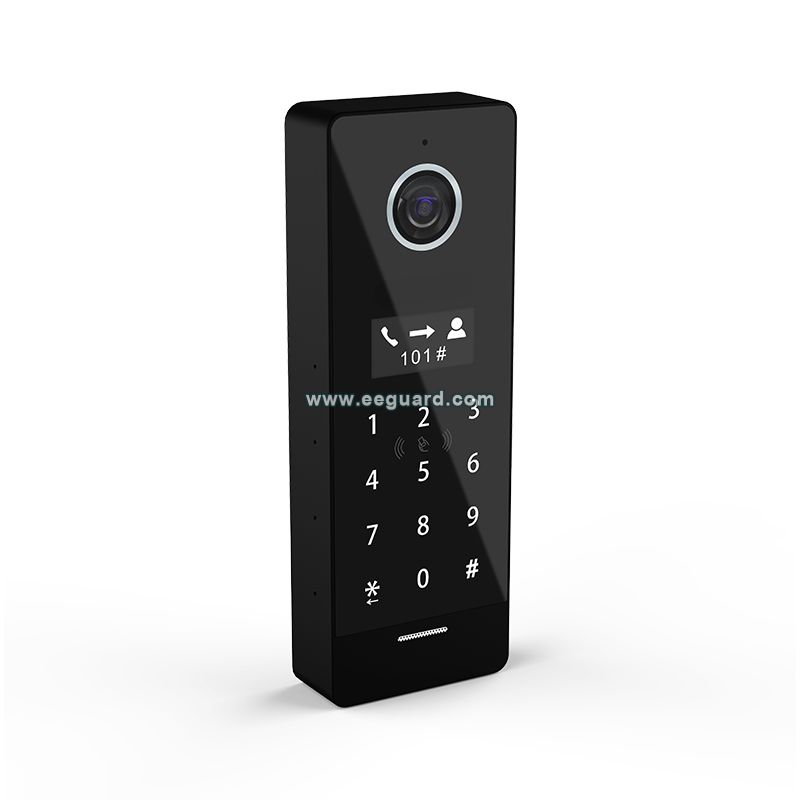

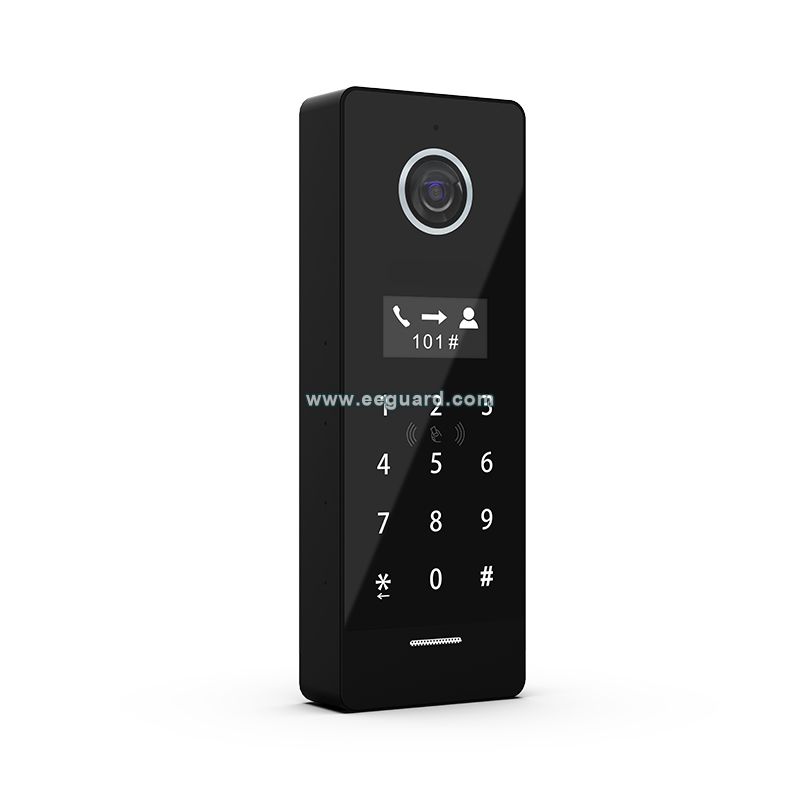

ED004-20APID

1080P AHD Metal case ID/IC Unlock All In One Non Polarity Central Power Supply

IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne

1080P AHD Metal case ID/IC Unlock All In One Non Polarity Central Power Supply

Display screen： 1.3 inches
Display resolution： 64x128
Processor： High-Performance Embedded SOC Processor
Operation system： Embedded Linux Operation System
Camera： CMOS Low Illumination 2 MP HD Colorful Camera
Video compression standard： H.265 (default), H264
Resolution： 1920x1080
Video frame rate： 25 fps
Audio input： Built-in Omnidirectional Microphone
Audio output： Built-in Loudspeaker
Audio compression standard： G.711 U
Audio compression rate： 64 Kbps
Audio quality： Noise Suppression and Echo Cancellation
Light supplement mode： IR supplement
PLC rate： Max. 500Mbps
Carrier voltage： 18V-36VDC
Lock： 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
Power supply： 18V-36VDC
Viewing Angle： 120°
Power consumption： 6W(Max), 3.5W(Standby)
Family max.： 20
Working temperature： -40°C - 60°C
Working humidity： 10% - 90%

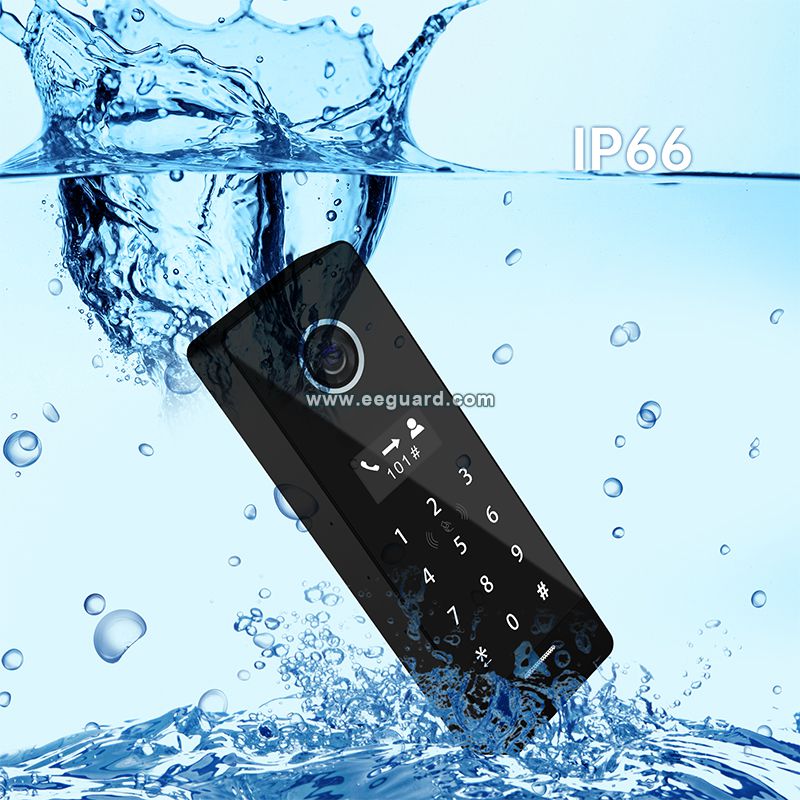

IP protection level： IP66

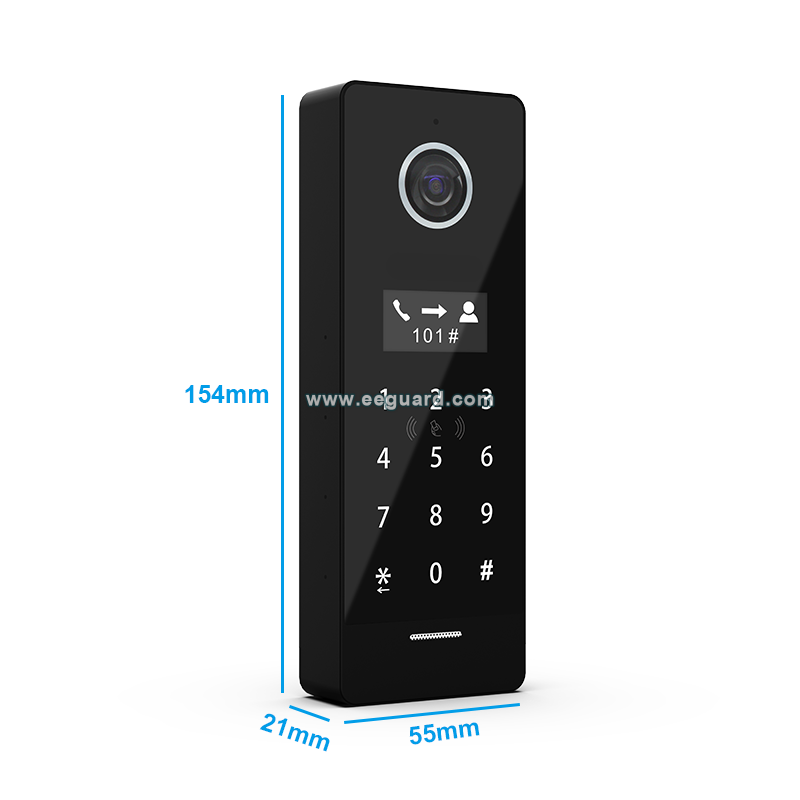

Dimensions： 154x55x21mm

Display screen： 1.3 inches
Display resolution： 64x128
Processor： High-Performance Embedded SOC Processor
Operation system： Embedded Linux Operation System
Camera： CMOS Low Illumination 2 MP HD Colorful Camera
Video compression standard： H.265 (default), H264
Resolution： 1920x1080
Video frame rate： 25 fps
Audio input： Built-in Omnidirectional Microphone
Audio output： Built-in Loudspeaker
Audio compression standard： G.711 U
Audio compression rate： 64 Kbps
Audio quality： Noise Suppression and Echo Cancellation
Light supplement mode： IR supplement
PLC rate： Max. 500Mbps
Carrier voltage： 18V-36VDC
Lock： 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
Power supply： 18V-36VDC
Viewing Angle： 120°
Power consumption： 6W(Max), 3.5W(Standby)
Family max.： 20
Working temperature： -40°C - 60°C
Working humidity： 10% - 90%
IP protection level： IP66
Dimensions： 154x55x21mm

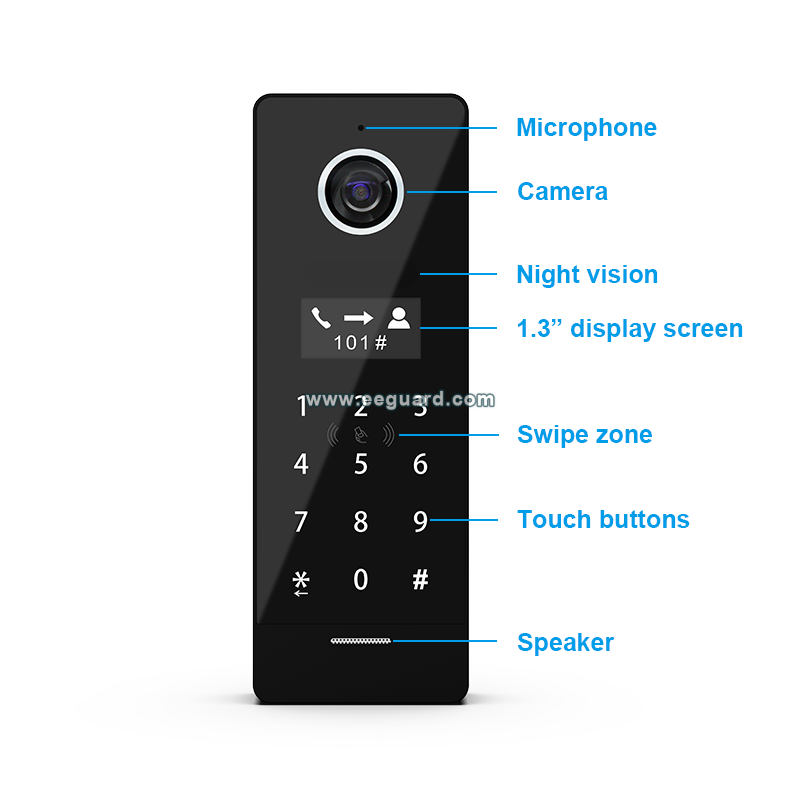

CMOS 2MP HD colorful camera

Two-wire interface

Wide viewing angle

Supports 20 apartments

Support ID/IC Cards & Password Unlock

IR supplement

10M/100M Self-adaptive Etherne

Vandal-proof with full metal case

Support anti-disassembly alarm function

1.3" screen display

ID/IC INTERFACE:

125KHZ (ID) / 13.56MHZ (IC)

Em marine (ID) / Mifare (IC)

Supports ISO/IEC 18000-2 type A (ID)

Supports ISO/IEC 14443 type A 106kb/s (IC)
