ED004-1APID

1080P AHD Metal case ID/IC Unlock All In One Non Polarity Central Power Supply

IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne

1080P AHD Metal case ID/IC Unlock All In One Non Polarity Central Power Supply

  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Camera: CMOS Low Illumination 2 MP HD Colorful Camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio input: Built-in Omnidirectional Microphone
  • Audio output: Built-in Loudspeaker
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • PLC rate: Max. 500Mbps
  • Carrier voltage: 18V-36VDC
  • Lock: 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
  • Power supply: 18V-36VDC
  • Viewing Angle: 120°
  • Power consumption: 6W(Max), 3.5W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66

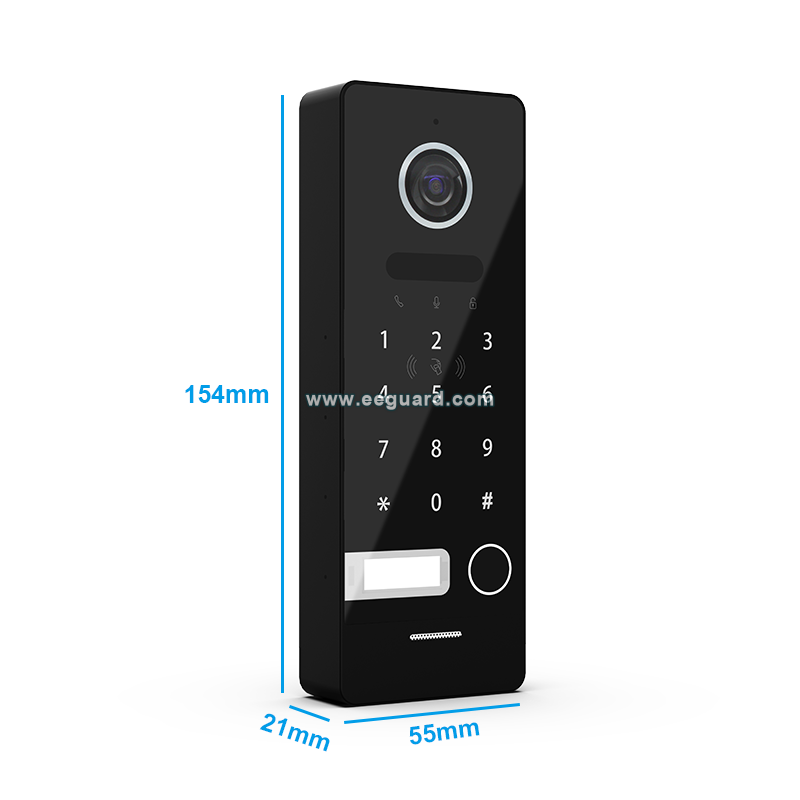

  • Dimensions: 154x55x21mm

  • Parameters
  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Camera: CMOS Low Illumination 2 MP HD Colorful Camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio input: Built-in Omnidirectional Microphone
  • Audio output: Built-in Loudspeaker
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • PLC rate: Max. 500Mbps
  • Carrier voltage: 18V-36VDC
  • Lock: 1CH NO(NC) relay unlock (MAX AC/DC36V 4A) 1CH NO Gate unlock connector (MAX AC/DC36V 4A)
  • Power supply: 18V-36VDC
  • Viewing Angle: 120°
  • Power consumption: 6W(Max), 3.5W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66
  • Dimensions: 154x55x21mm

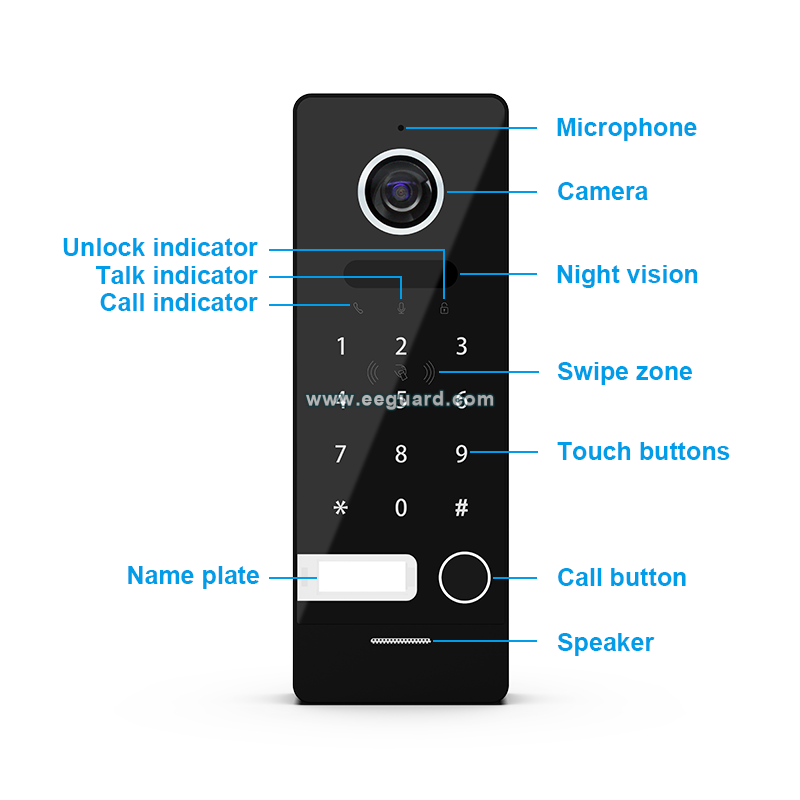

CMOS 2MP HD colorful camera

Two-wire interface

Wide viewing angle

Supports 1 apartment

Support ID/IC Cards & Password Unlock

IR supplement

10M/100M Self-adaptive Etherne

Vandal-proof with full metal case

Support anti-disassembly alarm function



ID/IC INTERFACE:

125KHZ (ID) / 13.56MHZ (IC)

Em marine (ID) / Mifare (IC)

Supports ISO/IEC 18000-2 type A (ID)

Supports ISO/IEC 14443 type A 106kb/s (IC)


ED004-1APID
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Two-wire interface, 10M/100M Self-adaptive Etherne
