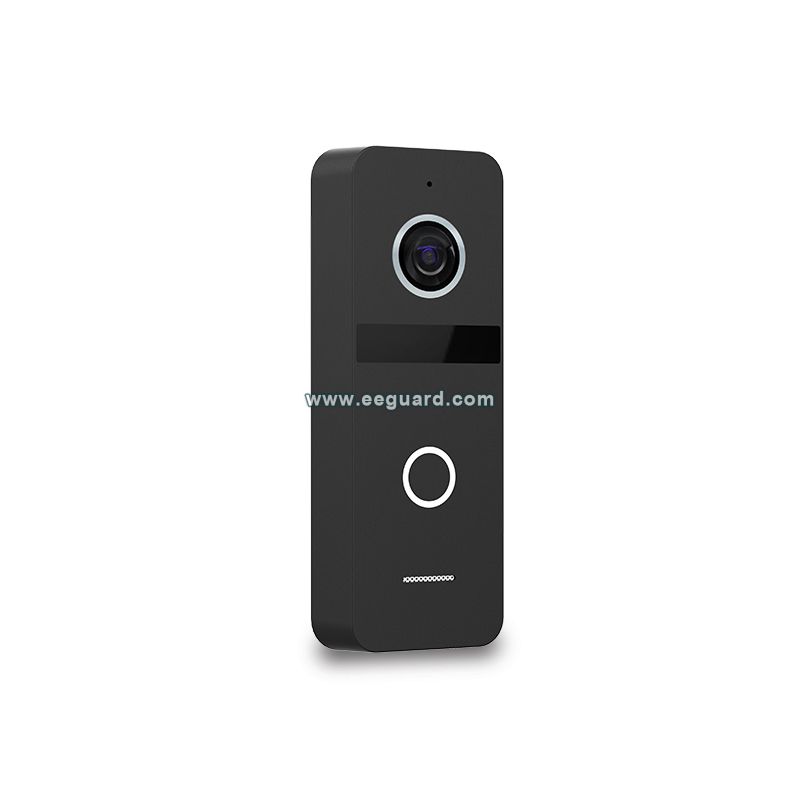

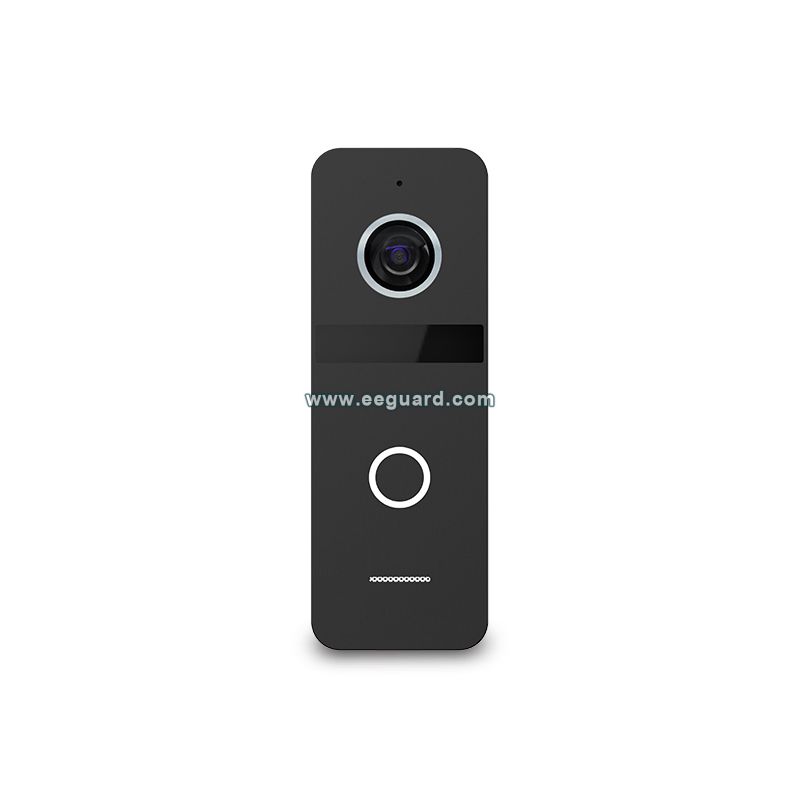

ED003B

1080P AHD Metal case

IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne

1080P AHD Metal case

  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Network interface: 10M/100M adaptive
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A) (Optional)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (MAX AC/DC36V 4A) (Optional)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: POE IEEE 802.3af / 15V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66

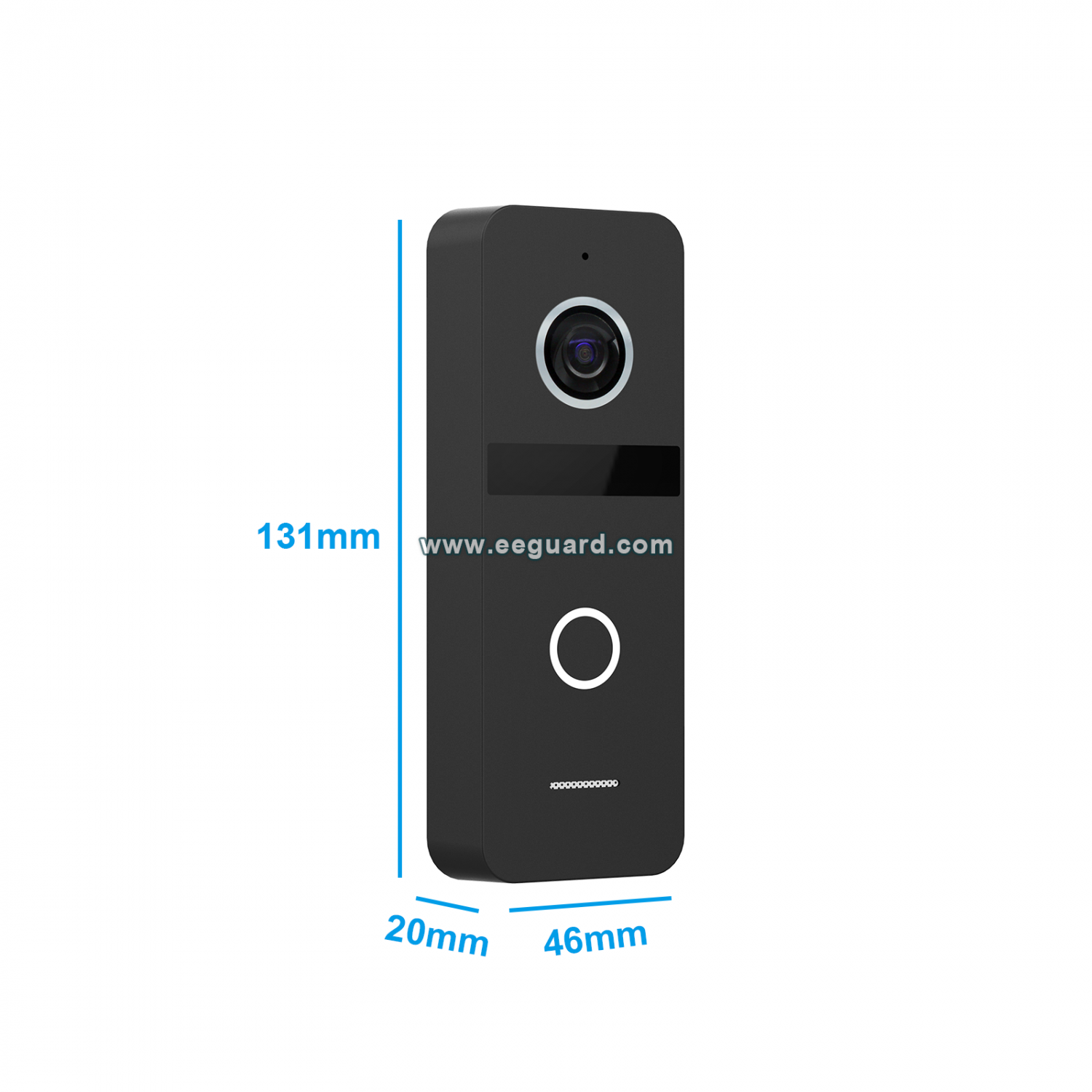

  • Dimensions: 131x46x20mm

  • Parameters
  • Processor: High-Performance Embedded SOC Processor
  • Operation system: Embedded Linux Operation System
  • Network interface: 10M/100M adaptive
  • Camera: 2MP CMOS HD camera
  • Video compression standard: H.265 (default), H264
  • Resolution: 1920x1080
  • Video frame rate: 25 fps
  • Audio intercom mode: Full duplex
  • Audio compression standard: G.711 U
  • Audio compression rate: 64 Kbps
  • Audio quality: Noise Suppression and Echo Cancellation
  • Light supplement mode: IR supplement
  • Ringbell: NO (MAX AC/DC36V 4A) (Optional)
  • Lock: NO/NC (Max AC/DC36V 4A)
  • Gate: NO (MAX AC/DC36V 4A) (Optional)
  • Speaker: 1W/8 ohm
  • Microphone: -38dB±2/2V
  • Power supply: POE IEEE 802.3af / 15V, 0.8A
  • Viewing Angle: 120°
  • Power consumption: 4.5W(Max), 3W(Standby)
  • Family max.: 1
  • Working temperature: -40°C - 60°C
  • Working humidity: 10% - 90%
  • IP protection level: IP66
  • Dimensions: 131x46x20mm

Video intercom functions

Wide viewing angle

Self-adaptive infrared light supplement

High-performance embedded SOC processor

Full duplex voice intercom

Support 1 apartment

Can control a lock relay, a GATE relay

Vandal-proof with full metal case

Support anti-disassembly alarm function

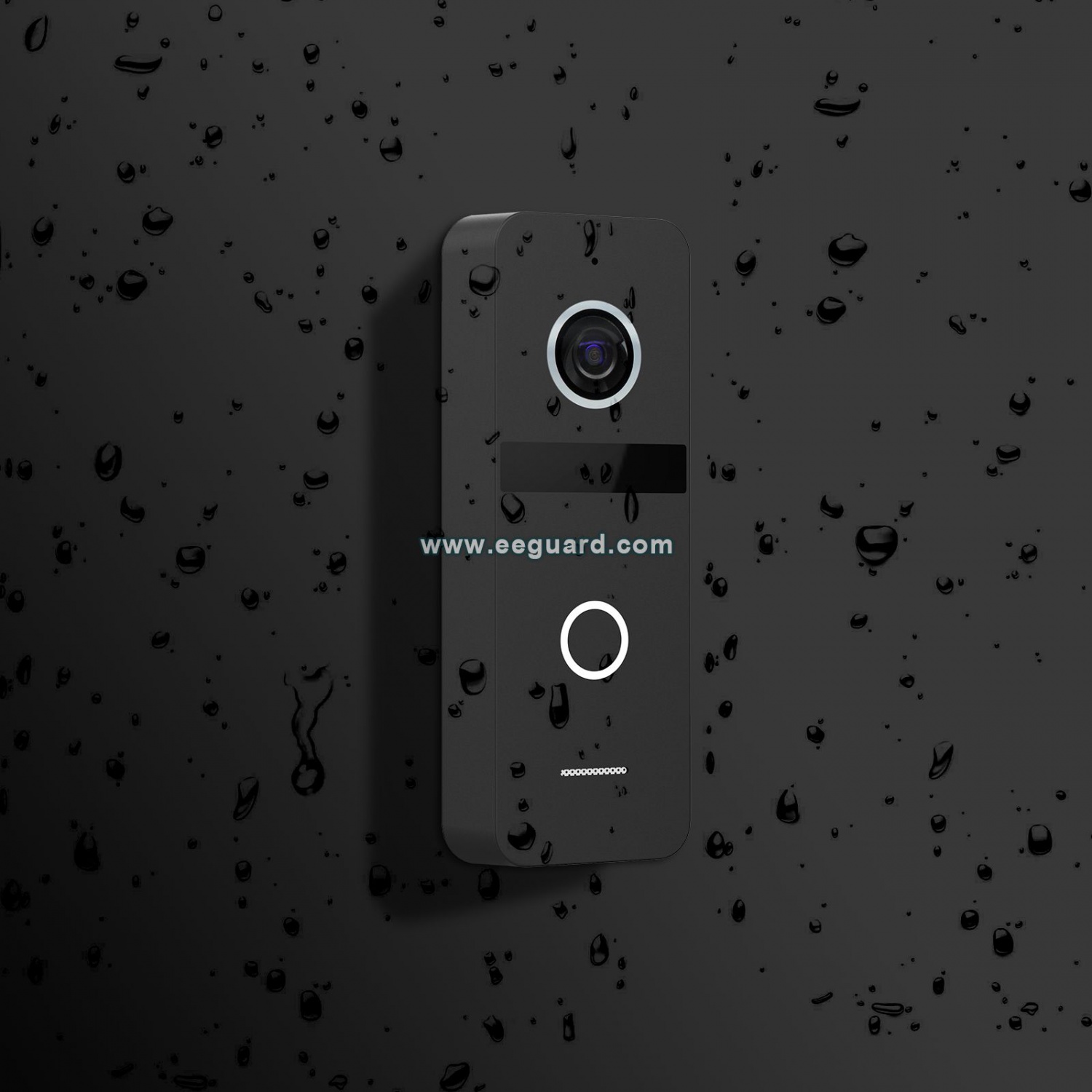

Waterproof IP66

IR supplement

Support POE power supply and external adapter power supply


ED003B
IP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
