ED002B
1080P AHD Metal caseIP66 waterproof, Night Vision, Metal case, CMOS 2MP HD colorful camera, Wire interface, 10M/100M Self-adaptive Etherne
1080P AHD Metal case
- Processor： High-Performance Embedded SOC Processor
- Operation system： Embedded Linux Operation System
- Network interface： 10M/100M adaptive
- Camera： 2MP CMOS HD camera
- Video compression standard： H.265 (default), H264
- Resolution： 1920x1080
- Video frame rate： 25 fps
- Audio intercom mode： Full duplex
- Audio compression standard： G.711 U
- Audio compression rate： 64 Kbps
- Audio quality： Noise Suppression and Echo Cancellation
- Light supplement mode： IR supplement
- Ringbell： NO (MAX AC/DC36V 4A) (Optional)
- Lock： NO/NC (Max AC/DC36V 4A)
- Gate： NO (MAX AC/DC36V 4A) (Optional)
- Speaker： 1W/8 ohm
- Microphone： -38dB±2/2V
- Power supply： POE IEEE 802.3AF ; DC12-15V, 4W
- Viewing Angle： 120°
- Family max.： 1
- Working temperature： -30°C - 60°C
- Working humidity： 10% - 90%
- IP protection level： IP66

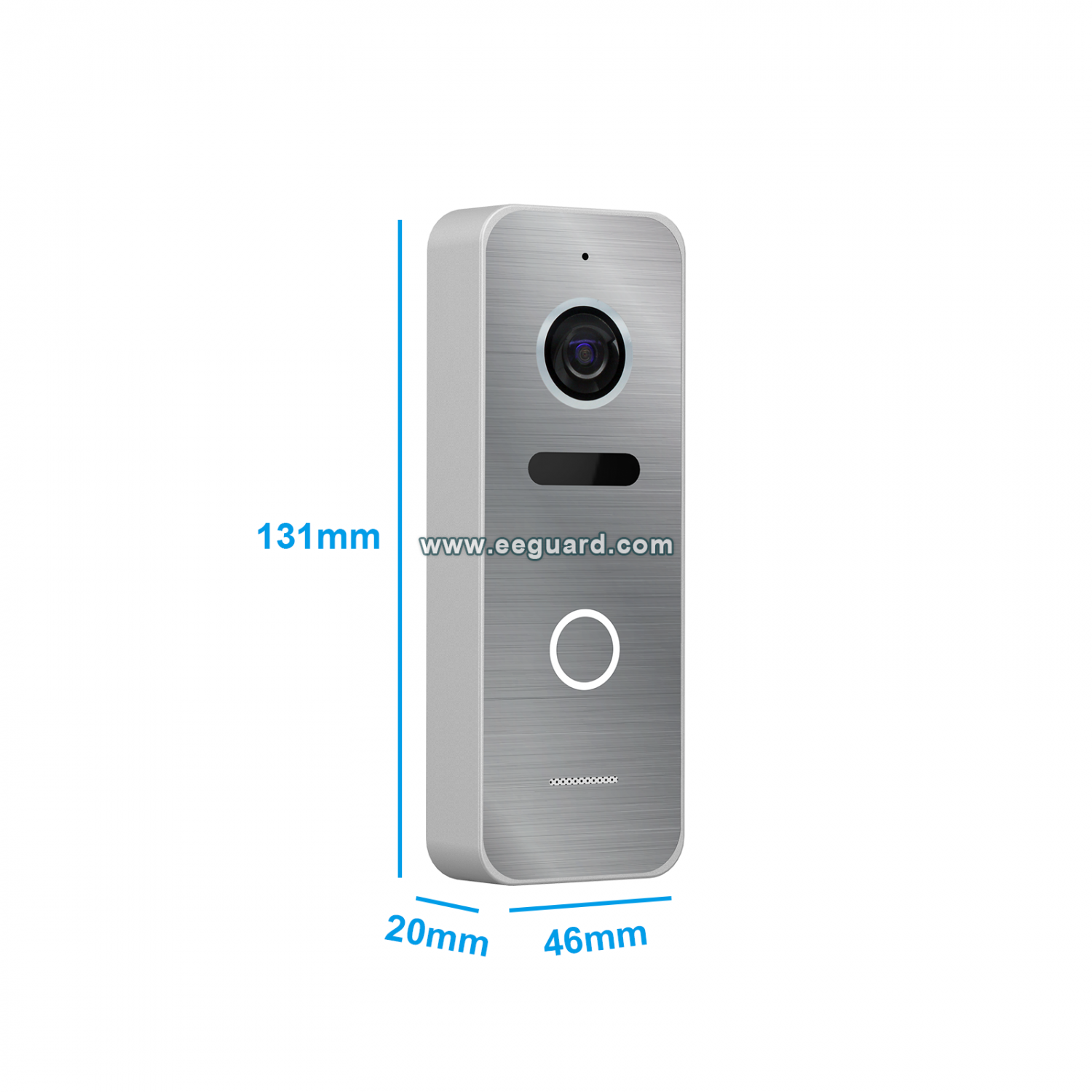

- Dimensions： 131x46x20mm
- Parameters
- Processor： High-Performance Embedded SOC Processor
- Operation system： Embedded Linux Operation System
- Network interface： 10M/100M adaptive
- Camera： 2MP CMOS HD camera
- Video compression standard： H.265 (default), H264
- Resolution： 1920x1080
- Video frame rate： 25 fps
- Audio intercom mode： Full duplex
- Audio compression standard： G.711 U
- Audio compression rate： 64 Kbps
- Audio quality： Noise Suppression and Echo Cancellation
- Light supplement mode： IR supplement
- Ringbell： NO (MAX AC/DC36V 4A) (Optional)
- Lock： NO/NC (Max AC/DC36V 4A)
- Gate： NO (MAX AC/DC36V 4A) (Optional)
- Speaker： 1W/8 ohm
- Microphone： -38dB±2/2V
- Power supply： POE IEEE 802.3AF ; DC12-15V, 4W
- Viewing Angle： 120°
- Family max.： 1
- Working temperature： -30°C - 60°C
- Working humidity： 10% - 90%
- IP protection level： IP66
- Dimensions： 131x46x20mm

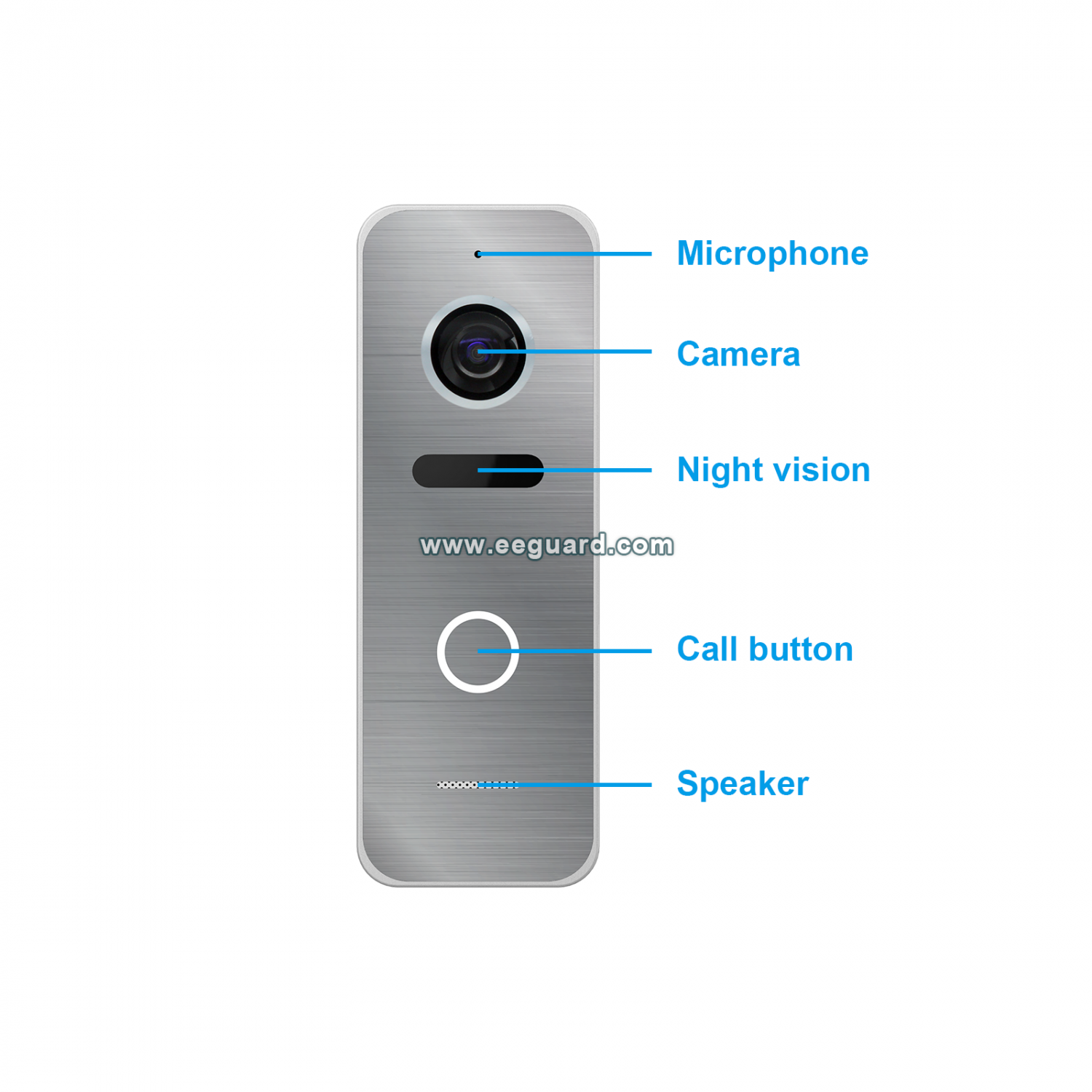

Video intercom functions
Wide viewing angle 120°
Self-adaptive infrared light supplement
High-performance embedded SOC processor
Full duplex voice intercom
Support 1 apartment
Can control a lock relay, a GATE relay
Vandal-proof with full metal case
Support anti-disassembly alarm function

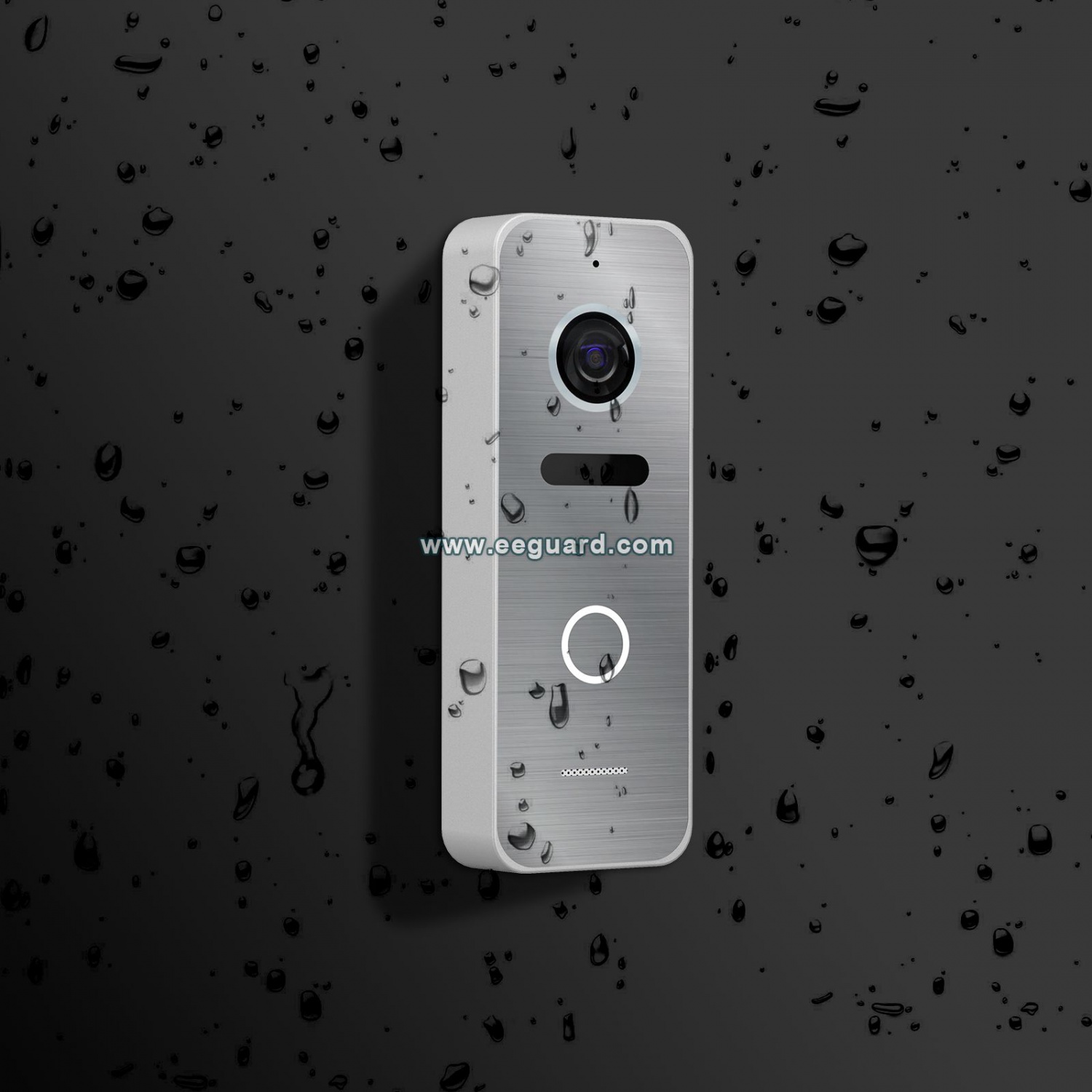

IP66 & IK07
IR supplement
Support POE power supply and external adapter power supply
