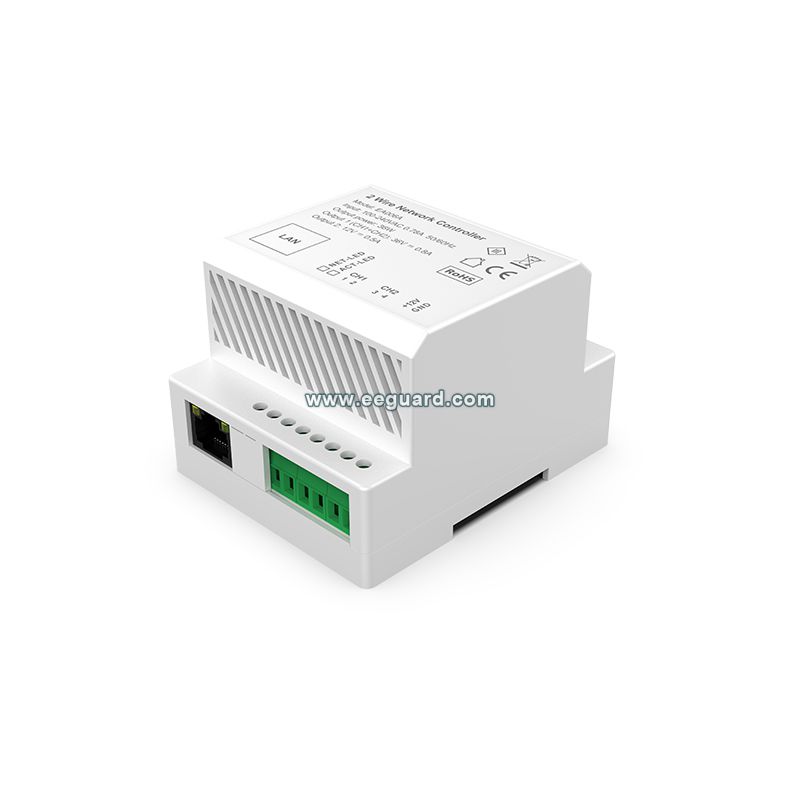

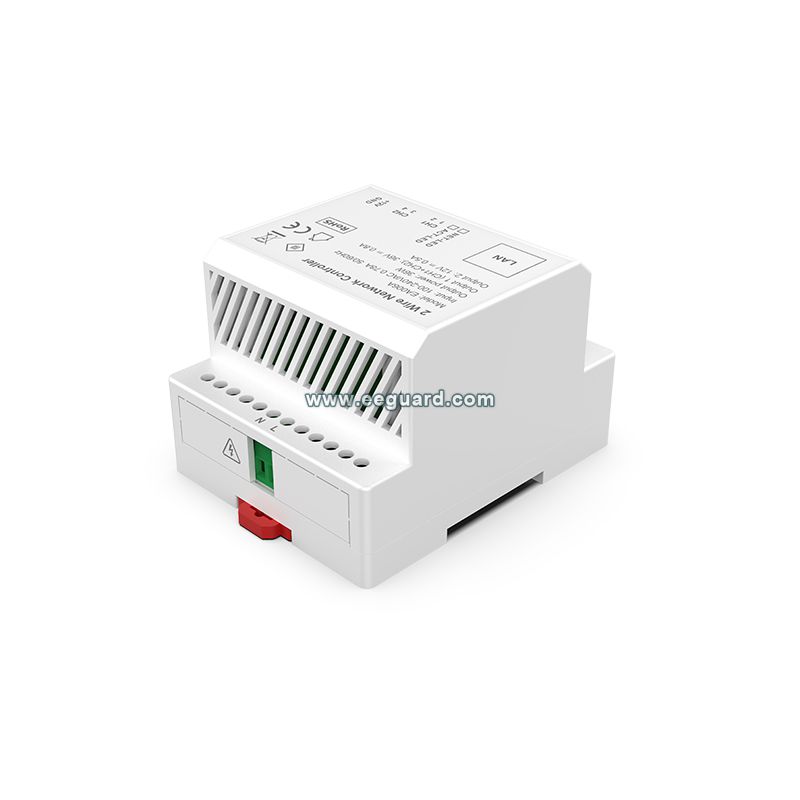

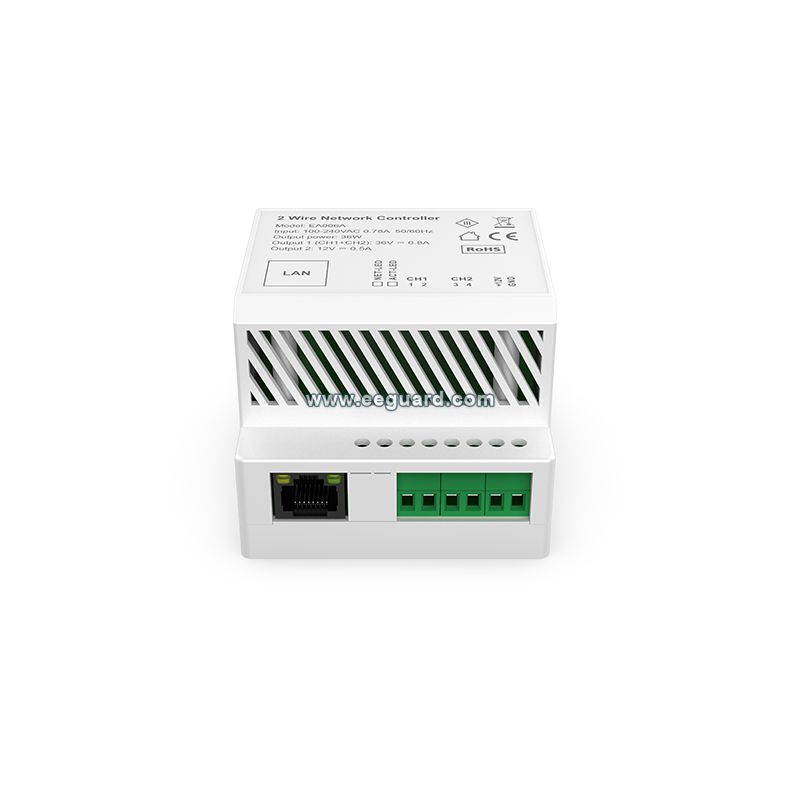

EA006A - 2 Wire Network Controller

All In One Non Polarity Central Power Supply

2 Wire Network Controller, 2 Wire IP&WiFi distributor with power supply, RJ-45 Interface, 2 Two-Wire Interface to connect device, Can integrate ONVIF IP cameras, All In One, Central Power Supply, Non Polarity

All In One Non Polarity Central Power Supply

  • Port: 4 ports for BUS
  • Network Interface: 10M/100M adaptive
  • Voltage: AC100V - 240V
  • Power output 1: (CH1 + CH2) DC36V/0.8A, 30W (Max)
  • Power output 2: DC12V/0.5A, 6W (Max) Note: Support electric bolt lock / electric magnetic lock working
  • Consumption: 5 W (Max.)
  • Working temperature: -10 °C - 50 °C
  • Working humidity: 10% - 90%
  • Dimensions: 72x90x59mm

  • Parameters
  • Port: 4 ports for BUS
  • Network Interface: 10M/100M adaptive
  • Voltage: AC100V - 240V
  • Power output 1: (CH1 + CH2) DC36V/0.8A, 30W (Max)
  • Power output 2: DC12V/0.5A, 6W (Max) Note: Support electric bolt lock / electric magnetic lock working
  • Consumption: 5 W (Max.)
  • Working temperature: -10 °C - 50 °C
  • Working humidity: 10% - 90%
  • Dimensions: 72x90x59mm

2-wire IP&WiFi distributor with power supply

Central power supply

DC36V, 0.8A / DC12V, 0.5A

Din-rail intallation


All In One

Non Polarity

EA006A - 2 Wire Network Controller
2 Wire Network Controller, 2 Wire IP&WiFi distributor with power supply, RJ-45 Interface, 2 Two-Wire Interface to connect device, Can integrate ONVIF IP cameras, All In One, Central Power Supply, Non Polarity
