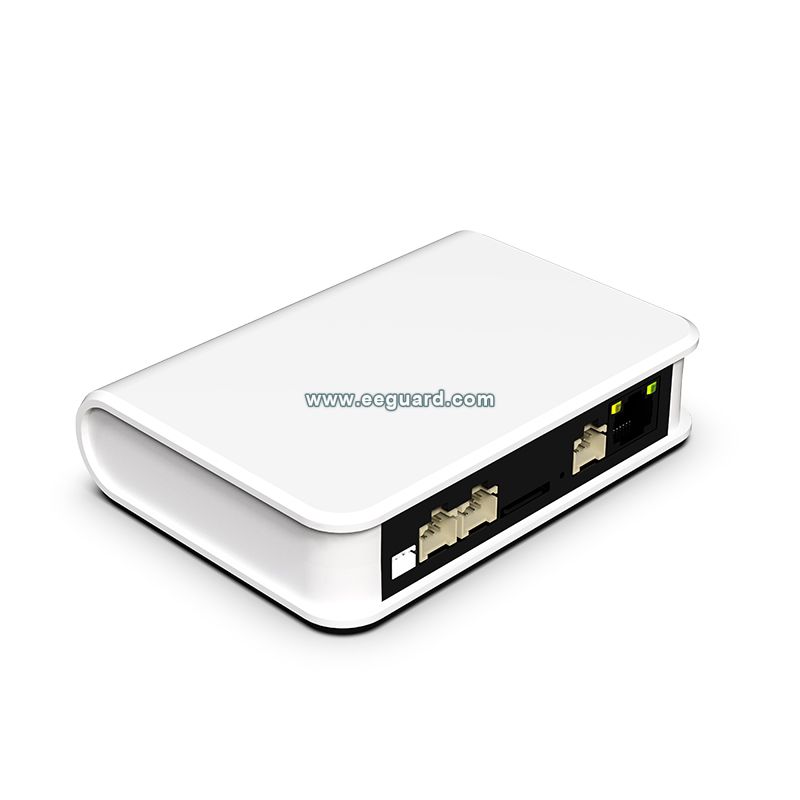

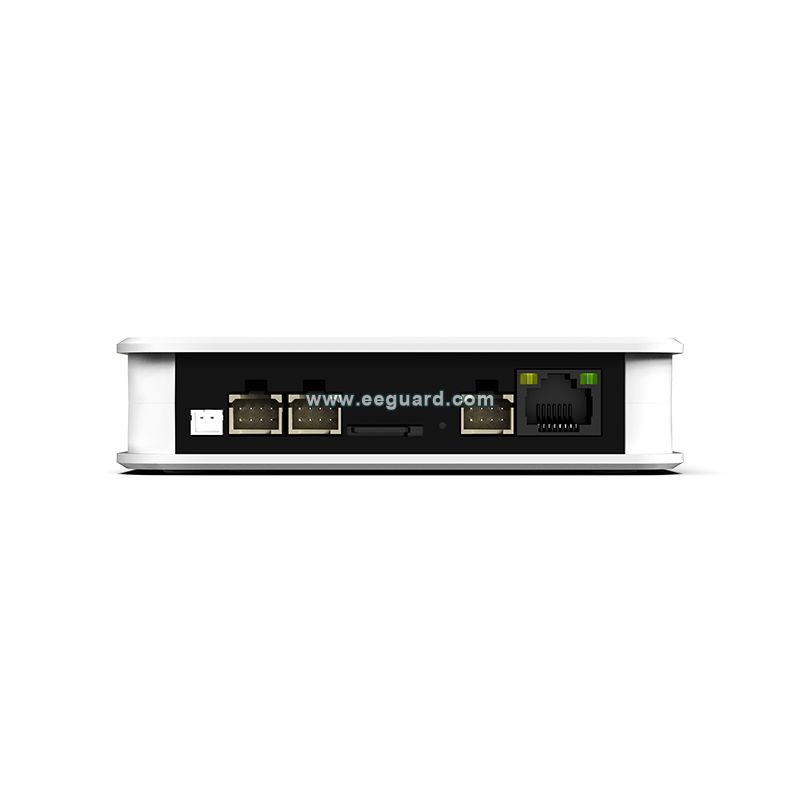

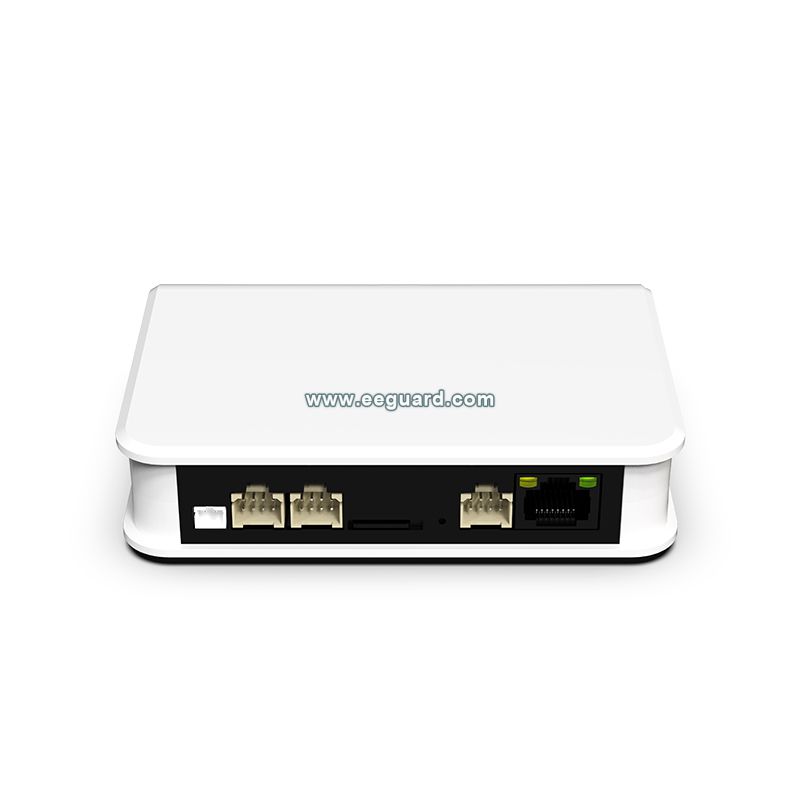

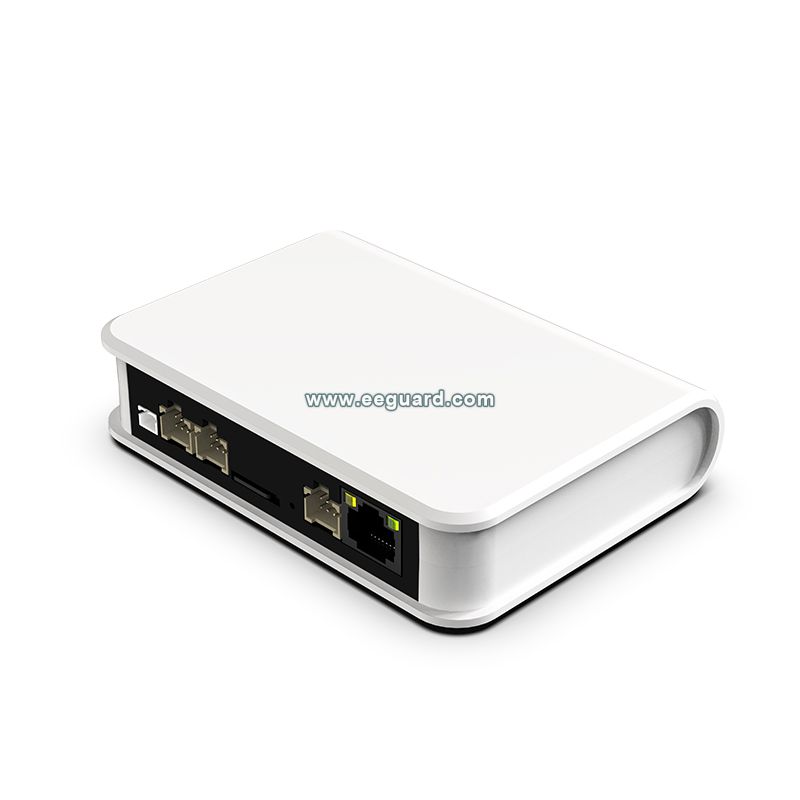

EA005M (IP/WIFI Box)

AHD CVBS IP/WIFI APP TUYA Cloud

Work compatible all of our CVBS/AHD models, Support: iOS & Android, Video recording & Video playback from mobile APP, Push notifications

AHD CVBS IP/WIFI APP TUYA Cloud

  • Support formats: CVBS / AHD
  • Communication mode: 485 / TCP / IP
  • Operating frequency: 2.4GHz-2.4835GHz
  • Network Interface: 10M / 100M self-adaption
  • IEEE Standards: IEEE 802.11b/g/n
  • Networking way: WIFI / RJ45
  • Power supply: DC15V
  • Power consumption: 10W(Max), 2.5W(Standby)
  • Operation humidity: 0%-95%
  • Support ringbell voltage and current: 30VDC(max), 4A(max)
  • Support outdoor panel: 2
  • Operation temperature: -10℃ to +40℃
  • Dimension: 110x80x25mm

  • Parameters
  • Support formats: CVBS / AHD
  • Communication mode: 485 / TCP / IP
  • Operating frequency: 2.4GHz-2.4835GHz
  • Network Interface: 10M / 100M self-adaption
  • IEEE Standards: IEEE 802.11b/g/n
  • Networking way: WIFI / RJ45
  • Power supply: DC15V
  • Power consumption: 10W(Max), 2.5W(Standby)
  • Operation humidity: 0%-95%
  • Support ringbell voltage and current: 30VDC(max), 4A(max)
  • Support outdoor panel: 2
  • Operation temperature: -10℃ to +40℃
  • Dimension: 110x80x25mm

IP/WIFI Box with memory support max.128GB (FAT32)

Powerful smart mobile APP talk & unlock

Can work compatible 3rd party 4-wire analog door panel

Monitoring of doorbell from mobile APP

Simple DVR motion detection (Door 1)

Video recording from mobile APP (Door1)

Video playback from mobile APP (Door1)

Push notifications

Support: iOS & Android


EA005M (IP/WIFI Box)
Work compatible all of our CVBS/AHD models, Support: iOS & Android, Video recording & Video playback from mobile APP, Push notifications
