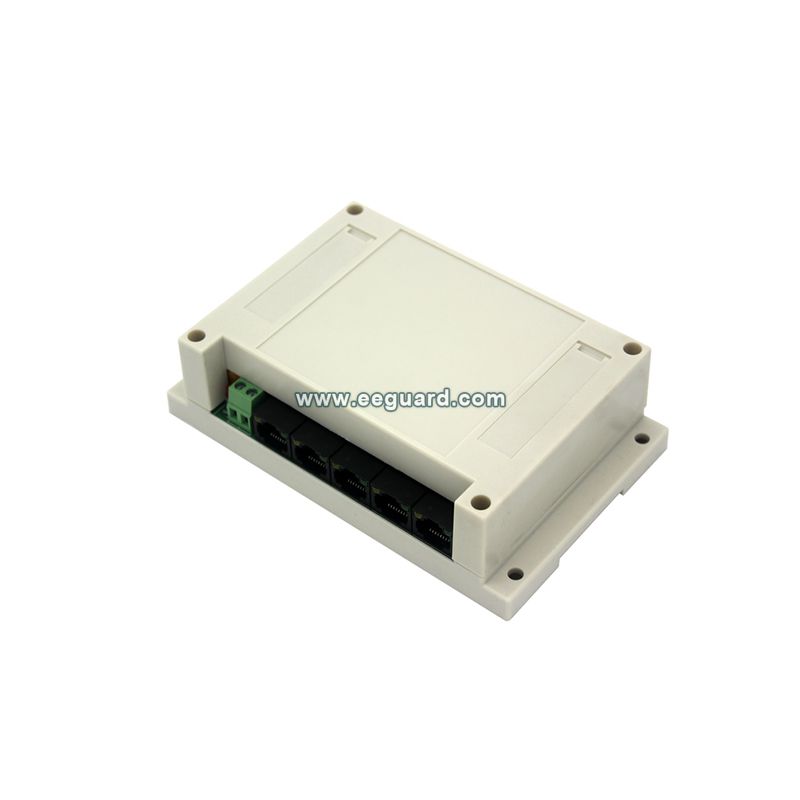

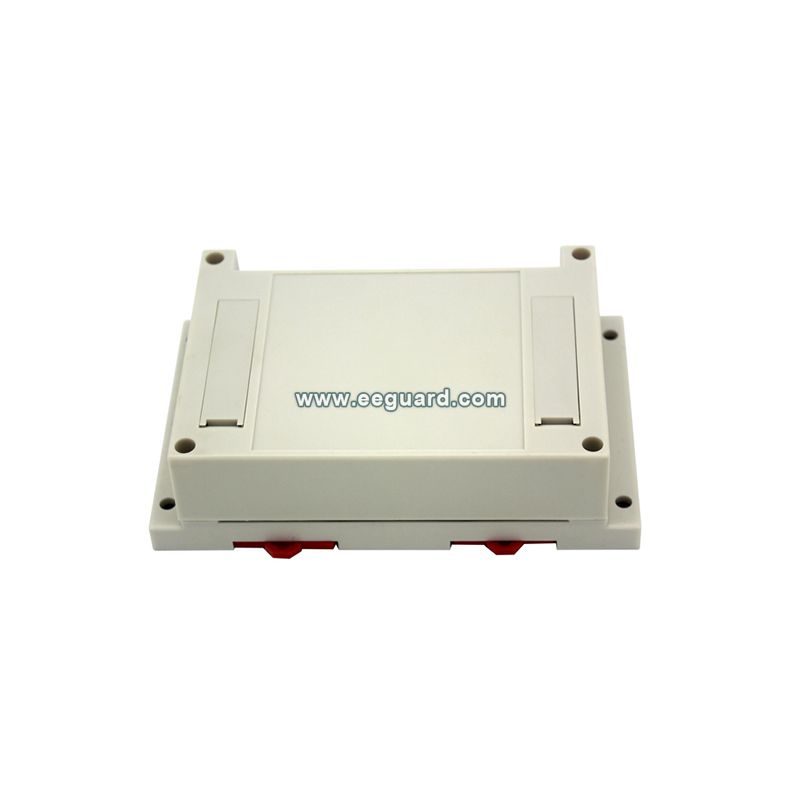

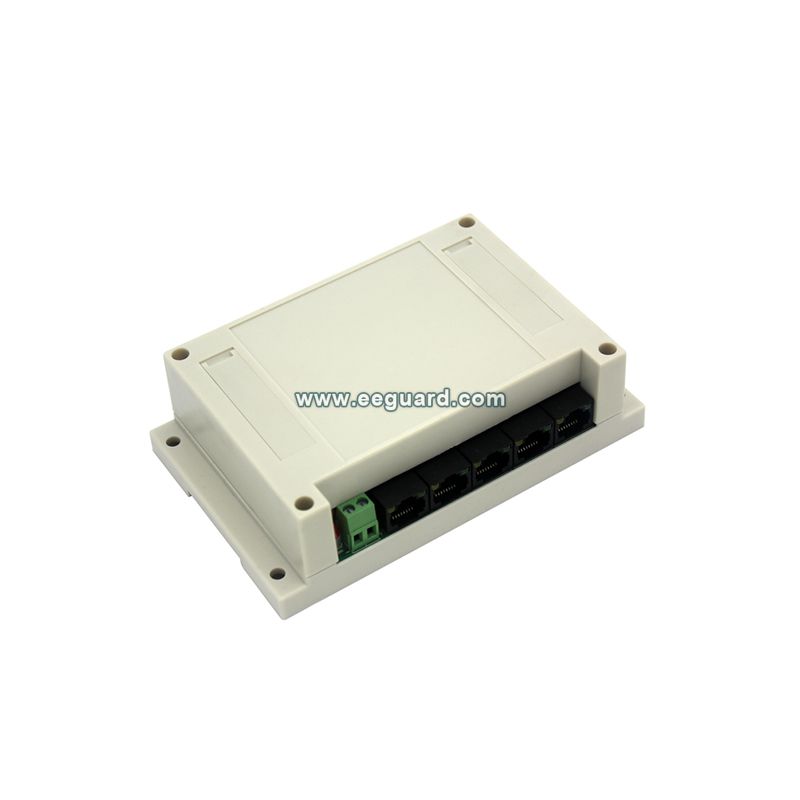

EH008-Apartment Panel Distributor

4 ways apartment outdoor panel distributor, With 4 ports for apartment outdoor panel, With power indicator

  • Voltage: DC18-36V/2W
  • Power: 430mA(Max),30mA(Standby)
  • Working Temperature: -30℃~+60℃
  • Operating Humidity: 0%~95%
  • Audio/Video Transmission Mode: Differential transmission
  • Audio/Video Signal Isolation Mode: Relay isolation
  • Communication Mode: Bus Transmission
  • Communication Signal Isolation Mode: Optoelectronic isolation
  • Dimension: 145x90x40mm

  • Parameters
  • Voltage: DC18-36V/2W
  • Power: 430mA(Max),30mA(Standby)
  • Working Temperature: -30℃~+60℃
  • Operating Humidity: 0%~95%
  • Audio/Video Transmission Mode: Differential transmission
  • Audio/Video Signal Isolation Mode: Relay isolation
  • Communication Mode: Bus Transmission
  • Communication Signal Isolation Mode: Optoelectronic isolation
  • Dimension: 145x90x40mm

* Connection between unit bus and system bus.

* Using for bus isolation, signal transmission, AV channels switch

* Using for extending more unit outdoor panels

* Outdoor panel distributor


2 way building distributor

With 2 ports for building

With 2 ports for apartment outdoor panel

With power indicator


Power: 18-36V DC/1W-3W

Communication mode: CAN bus

Dimension: 145*90*40mm

Support outdoor panel quantity: 1-2

Support vertical distributer quantity: 99

Operating temperature: -25℃ to + 50℃


EH008-Apartment Panel Distributor
4 ways apartment outdoor panel distributor, With 4 ports for apartment outdoor panel, With power indicator
